Fig 5

ID: ZDB-IMAGE-210802-29
Publication: Blokhina et al., 2021 - Rad21l1 cohesin subunit is dispensable for spermatogenesis but not oogenesis in zebrafish
All Figures: Figures for Blokhina et al., 2021


Figure Caption

Fig 5 <italic toggle='yes'>spo11;rad21l1</italic> double mutants are infertile males.

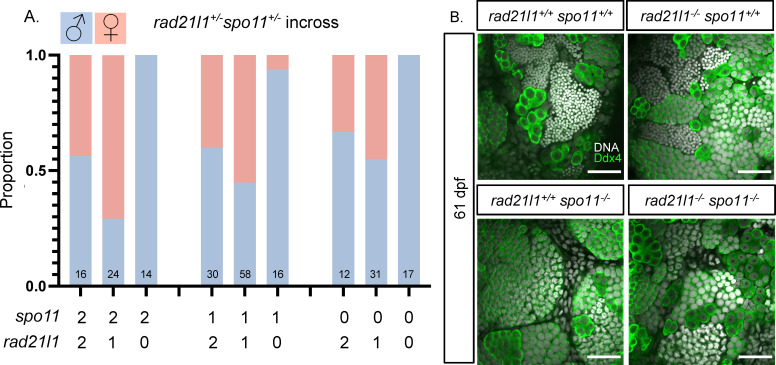

(A) Sex ratios of all genotypes resulting from a rad21l1^+/-;spo11^+/- incross. Data pooled from 6 crosses. 0, 1, and 2 on the x-axis refer to the number of wild-type copies of spo11 and rad21l1. (B) Whole mount testes stained for DNA (gray) and Ddx4 (green). WT and rad21l1^-/-;spo11^+/+ samples display clusters of mature sperm, while rad21l1^+/+;spo11^-/- and rad21l1^-/-;spo11^-/- samples do not. Scale bar = 30 μm.
