Figure 5
- ID
- ZDB-IMAGE-210726-55
- Publication
- Li et al., 2021 - Gypenosides Alleviate Cone Cell Death in a Zebrafish Model of Retinitis Pigmentosa
- All Figures
- Figures for Li et al., 2021
|
Figure Caption

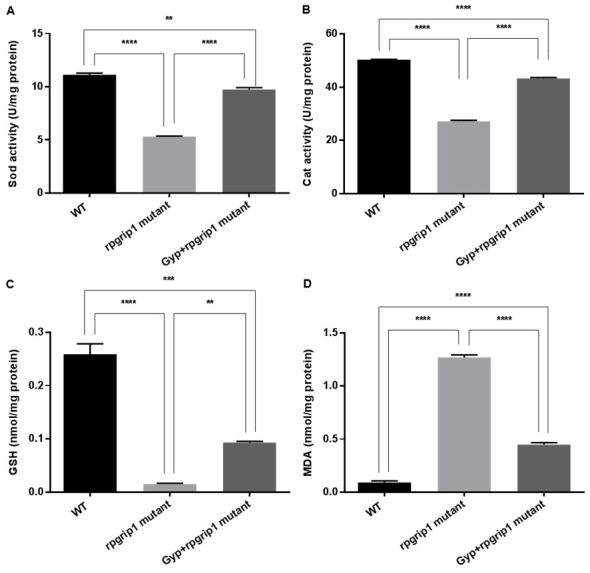

Figure 5 Sod (A) and catalase (B) activities, and GSH level (C) were markedly increased but MDA level (D) was significantly decreased in Gyp-treated rpgrip1 mutant zebrafish eye samples. WT, wildtype zebrafish; UT, untreated rpgrip1 mutant zebrafish. Statistical comparisons between individual groups were carried out using one-way ANOVA followed by Bonferroni’s test. Data are displayed as mean ± SEM (n = 6 animals of each group). ** p < 0.01, *** p < 0.001, **** p < 0.0001.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Antioxidants (Basel)
