ZFIN Image: Noy-Lotan et al., 2021, Fig. 7


Figure Caption

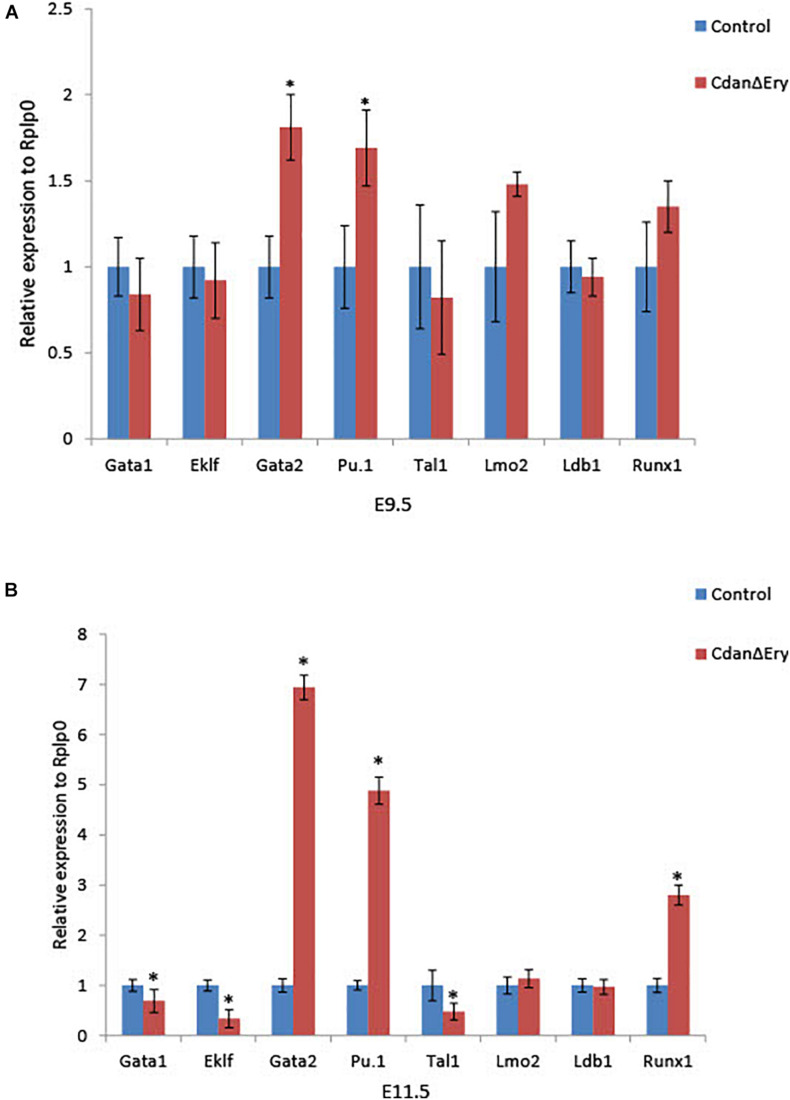

Fig. 7

Cdan1 ablation disrupts expression of master erythroid transcription factors. qRT-PCR was performed with RNA extracted from peripheral blood cells at E9.5 and E11.5, and normalized to Rplp0. Relative expression data are presented as mean ± SEM (n = 4–7 for each genotype). Student’s t-test was applied for statistical analysis. Asterisks indicate significant difference from the control. ^∗p < 0.01 (A) Relative expression in E9.5 Cdan^ΔEry circulating erythroblasts compared to littermate controls. (B) Relative expression in E11.5 Cdan^ΔEry circulating erythroblasts compared to littermate controls.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front. Physiol.
