Figure Caption

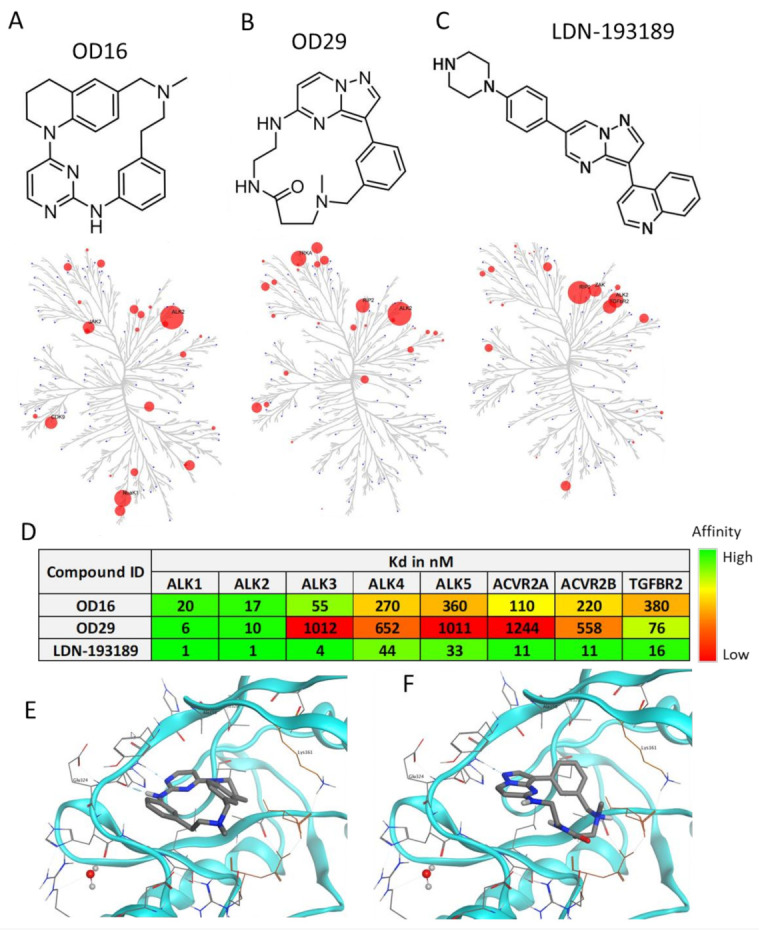

Figure 1 Structure and kinase profile of OD16 and OD29. (A–C) Chemical structure and the activity of a panel of 96 kinases in the presence of 100 nM of OD16 (A), OD29 (B), and LDN-193189 (C). (D) Affinity (Kd) of OD16, OD29, and LDN-193189 for the BMP, activin, and TGF-β type I and type II kinase receptors. (E,F) Structural model of OD16 (E) and OD29 (F) binding to the ALK1 hinge region in the ATP pocket.
