ZFIN Image: Orso et al., 2021, Figure 8


Figure Caption

Figure 8

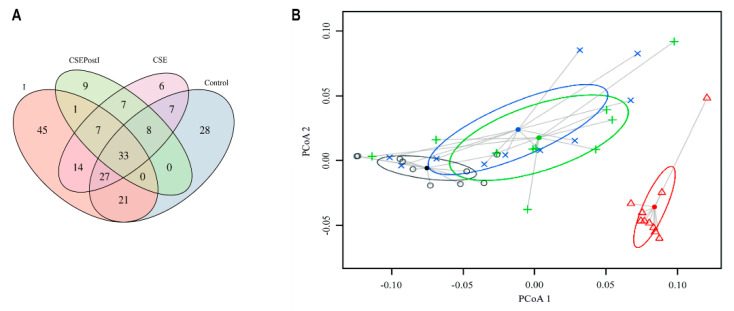

(A) Venn diagrams of OTU membership for core microbiota associated with the intestinal content of control zebrafish (C), inflamed zebrafish (I), inflamed zebrafish post-treated with chestnut shell extract (CSEpostI) and zebrafish fed chestnut shell extract (CSE). The OTU was designated as a part of core microbiome if OTU was found in more than 50% of samples from each group. (B) Principle coordinates analysis (PCoA) for microbiota associated with the intestinal content of control zebrafish (C), inflamed zebrafish (I), inflamed zebrafish post-treated with chestnut shell extract (CSEpostI) and zebrafish fed chestnut shell extract (CSE). Δ–C; o–I; x–CSE; +–CSEpostI.
