Figure 6

ID: ZDB-IMAGE-210623-47
Publication: Liu et al., 2021 - In vivo calcium imaging reveals disordered interictal network dynamics in epileptic stxbp1b zebrafish
All Figures: Figures for Liu et al., 2021


Figure Caption

Figure 6

Gap junction blockers reduce neuronal cascade intensity

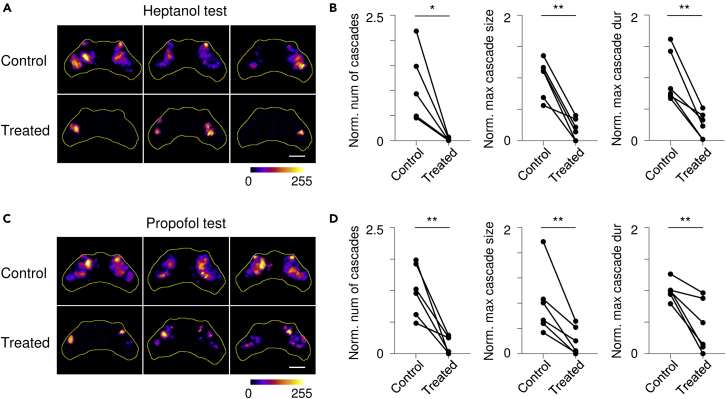

(A) Representative stack summation of binary time series from stxbp1b mutants before (top row) and after (bottom row) heptanol treatment. The cumulative intensity of activation is color coded as shown in the color bar.

(B) Comparison of normalized (norm.) number (num) of cascade, maximum (max) cascade size, and maximum cascade duration (dur) before and after heptanol treatment. Data were normalized to the average value from recordings before drug treatment. (C and D) Results from propofol experiments on stxbp1b mutants. Scale bars, 100 μm. n = 5 fish for each drug test. Statistical significance is indicated as ∗p < 0.05, ∗∗p < 0.01; Student's t test.
