FIGURE 3

ID: ZDB-IMAGE-210419-17
Source: Figures for Silman et al., 2021


Figure Caption

FIGURE 3

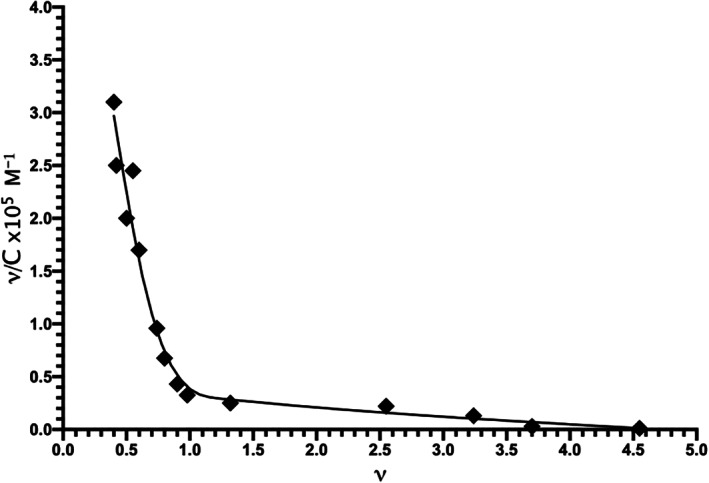

Scatchard plot of the interaction of Mn⁺² with TcAChE constructed on the basis of the titration of the metal ion with the enzyme as monitored by electron paramagnetic resonance (EPR), in accordance with Equation (1). The data points displayed were acquired in four separate experiments. ν = [Mn⁺²]_bound/[TcAChE]; ν/C = [Mn⁺²]_bound/([Mn⁺²]_free[TcAChE])×10⁵; C is the molar concentration of the free Mn⁺²
