Figure Caption

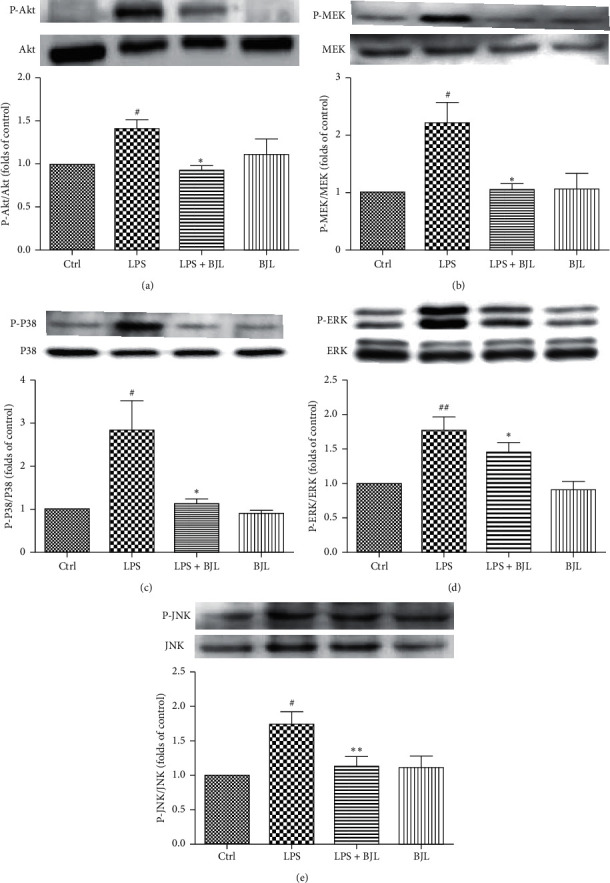

Figure 4 BJL suppressed LPS-stimulated activation of Akt/MAPK signaling cascades in RAW 264.7 cells. RAW 264.7 cells were treated LPS (0.3 μg/ml) with or without BJL (30 μg/ml) for 24 h and then followed by western blot analysis. Data were presented as the folds of the control group. Results were means ± S.E.M. of more than 3 experiments. p<0.05 and p<0.01 versus the control group. p<0.05 and p<0.01 versus the LPS-treated group.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Evid. Based Complement. Alternat. Med.
