Figure 6—figure supplement 4.

ID: ZDB-IMAGE-210204-97
Publication: Parab et al., 2021 - Endothelial cell type-specific molecular requirements for angiogenesis drive fenestrated vessel development in the brain
All Figures: Figures for Parab et al., 2021


Figure Caption

Figure 6—figure supplement 4. Co-localization analyses in <italic>TgBAC(vegfab:NTR)</italic>, <italic>TgBAC(vegfc:NTR)</italic>, and <italic>TgBAC(vegfd:NTR)</italic> embryos carrying the <italic xmlns:xlink='http://www.w3.org/1999/xlink'>Tg(mpeg1.1:Dendra2)</italic> transgene.

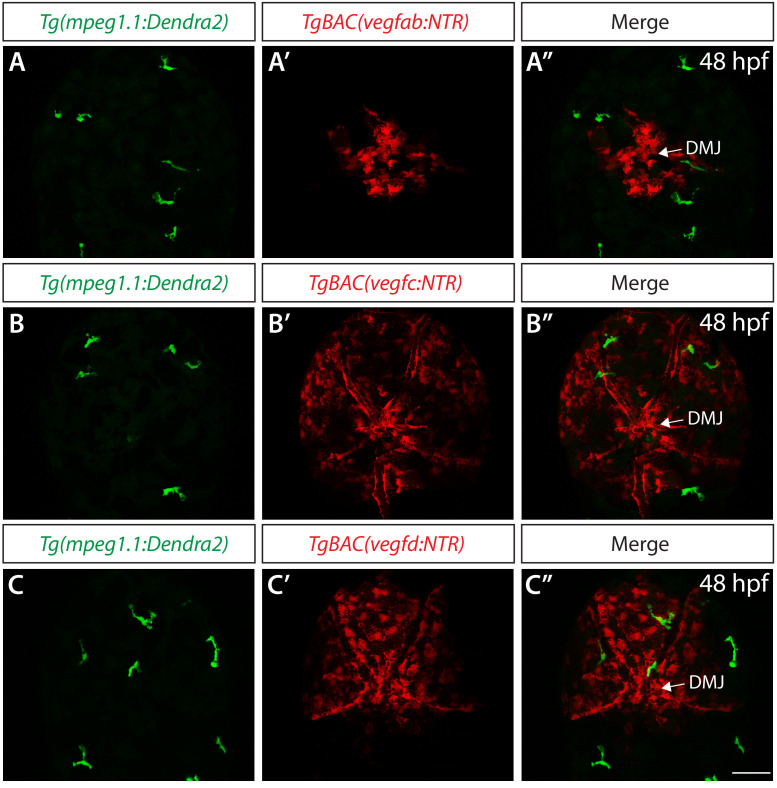

(A–A") Confocal maximum projection images of the dorsal views of a 48 hpf Tg(mpeg1.1:Dendra2);TgBAC(vegfab:NTR) embryo, showing non-overlapping distribution of EGFP⁺ and NTR-mCherry⁺ meningeal cells (n = 16 embryos; 89 Tg(mpeg1.1:Dendra2)⁺ cells examined; 0 cells co-localized with TgBAC(vegfab:NTR)⁺ cells). (B–B") Confocal maximum projection images of the dorsal views of a 48 hpf Tg(mpeg1.1:Dendra2);TgBAC(vegfc:NTR) embryo, showing non-overlapping distribution of EGFP⁺ and NTR-mCherry⁺ meningeal cells (n = 17 embryos; 95 Tg(mpeg1.1:Dendra2)⁺ cells examined; 0 cells co-localized with TgBAC(vegfc:NTR)⁺ cells). (C–C") Confocal maximum projection images of the dorsal views of a 48 hpf Tg(mpeg1.1:Dendra2);TgBAC(vegfd:NTR) embryo, showing non-overlapping distribution of EGFP⁺ and NTR-mCherry⁺ meningeal cells (n = 8 embryos; 39 Tg(mpeg1.1:Dendra2)⁺ cells examined; 0 cells co-localized with TgBAC(vegfd:NTR)⁺ cells). Scale bar: 50 μm.
