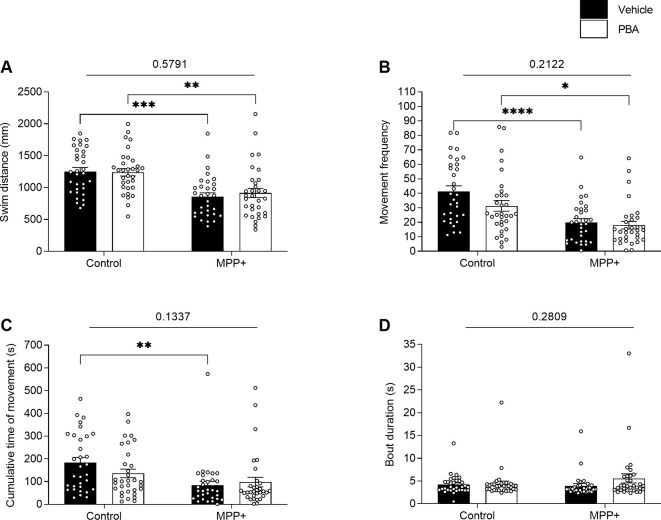

Figure 7

Figure 7

Effects of 4-phenylbutyrate (PBA) on motor activity of MPP+-treated zebrafish larvae. Larvae in the absence (Control) or presence of 500 μM MPP+ were treated with vehicle (black bars) or 100 μM PBA (white bars). Motor activity was evaluated for (A) distance swum (mm); (B) frequency of movement; (C) cumulative time of movement (s) and (D) movement bout duration (s) during five consecutive light-on phases. Data are presented as means ± SEM from a single experiment, control group n = 32, MPP+ group n = 31, PBA group n = 32, MPP+/PBA group n = 32. Normality was tested using D’Agostino and Pearson omnibus normality test followed by two-way ANOVA and Tukey’s post hoc analysis. P-value for interaction between neurotoxin exposure and drug treatment is shown above the graph. ****p < 0.0001, ***p < 0.001, **p < 0.01, *p < 0.05, for multiple comparisons.
