Figure 3

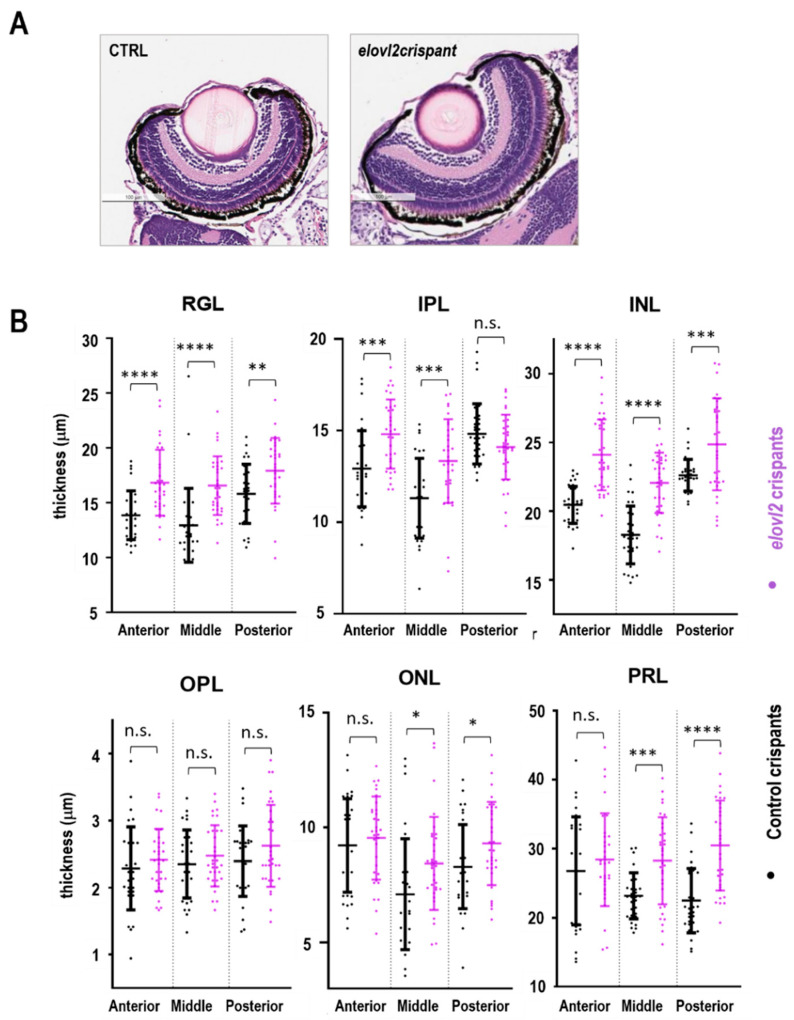

(A) H&E stained retinal sections of elovl2 and control crispants. (B) The thickness of the individual retinal layers of elovl2 and control crispants. Plots showing comparison of lengths of different layers in retina between control and elovl2 crispants. The measurements were taken at three different regions in the retina termed as anterior, posterior, and middle. RGL, Retinal Ganglion Cell Layer; IPL, Inner Plexiform Layer; INL, Inner Nuclear Layer; OPL, Outer Plexiform Layer; ONL, Outer Nuclear Layer; PRL, Photoreceptor Layer. (* p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001, ns—not significant). Each dot is a single cryosection.
