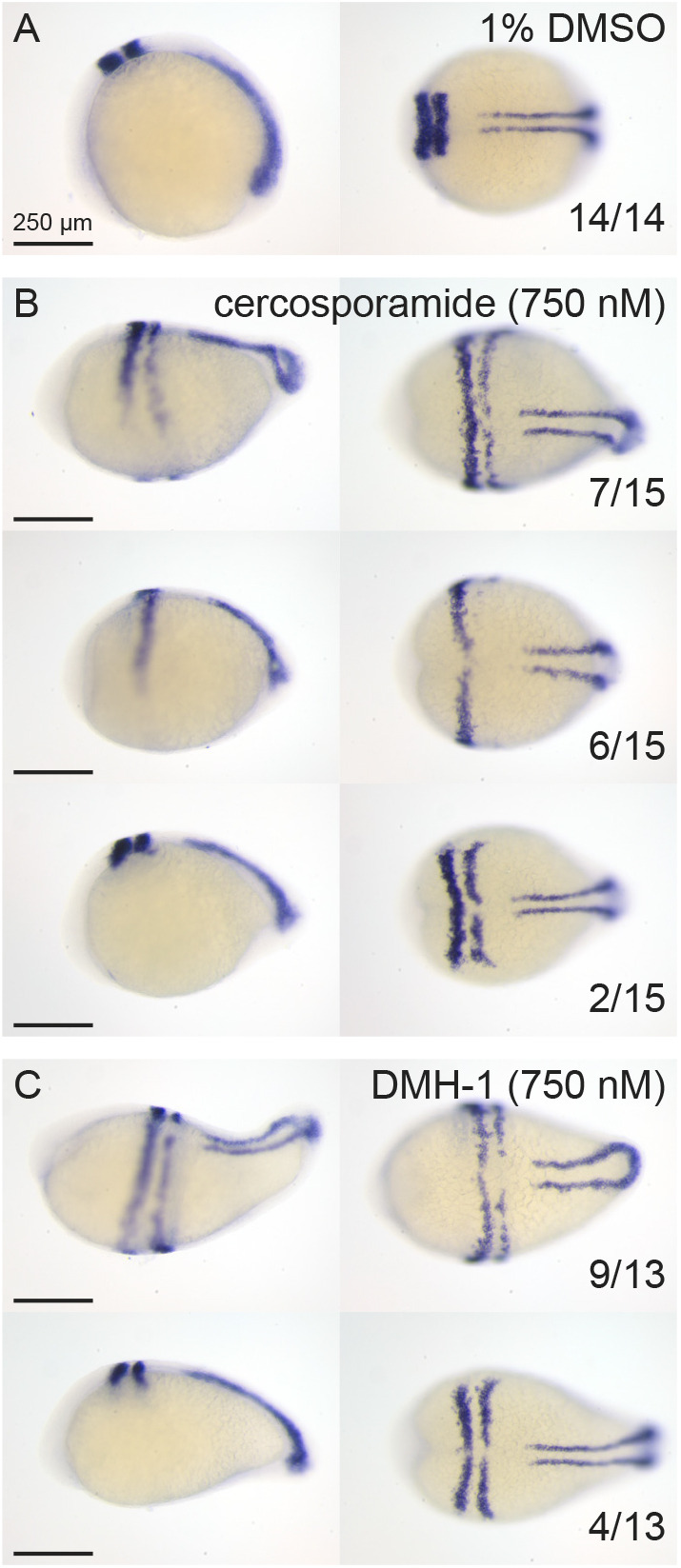

In situ hybridization using krox20/myod-specific probes confirms that cercosporamide and the well-known BMP inhibitor DMH-1 induced similar defects in zebrafish development. (A-C) Embryos were treated with 1% DMSO (control) (A), 750 nM cercosporamide (B) or 750 nM DMH-1 (C) from 6 hpf onwards and fixed at 12 hpf. In situ hybridization was performed using krox20/myod-specific probes. Representative examples of resulting embryos are shown with lateral view on the left and dorsal view on the right. In the bottom-right corner, the fraction of embryos showing the pattern is depicted.
