Figure 7.

ID

ZDB-IMAGE-200829-71

Antibodies

Ab4-ddit3

Publication

Liu et al., 2020 - TMEM216 Deletion Causes Mislocalization of Cone Opsin and Rhodopsin and Photoreceptor Degeneration in Zebrafish

All Figures

Figures for Liu et al., 2020


Figure Caption

Figure 7.

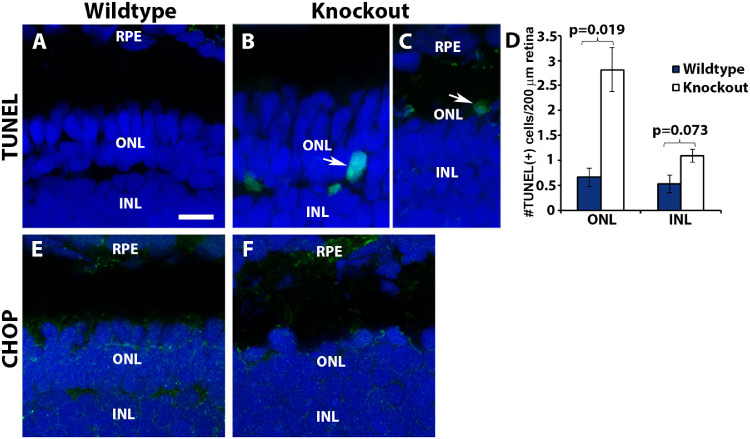

TUNEL-positive photoreceptor nuclei were increased in tmem216 knockouts. Cryosections from 7-dpf zebrafish were stained by TUNEL assay (green) and anti-CHOP (Proteintech), counter stained with DAPI. (A) Wildtype. (B, C) tmem216^snyR8Δ60 homozygous retina. Note TUNEL-positive DAPI-labeled rod (arrow in B) and cone (arrow in C) nuclei. (D) Quantification of TUNEL-positive nuclei. Number of TUNEL-positive nuclei were significantly increased in the outer nuclear layer of tmem216^snyR8Δ60 homozygous animals (n = 3, Student's t-test); similar phenotype was observed in tmem216^snyΔ175 animals. (E, F) CHOP staining of wildtype and knockout retina. Immunoreactivity of CHOP antibody was similar between wildtype and tmem216^snyR8Δ60 homozygous retina. Scale bar in A: 6 µm for A, E, and F; 8 µm for B and C.

Figure Data

Expression / Labeling details

Phenotype details
