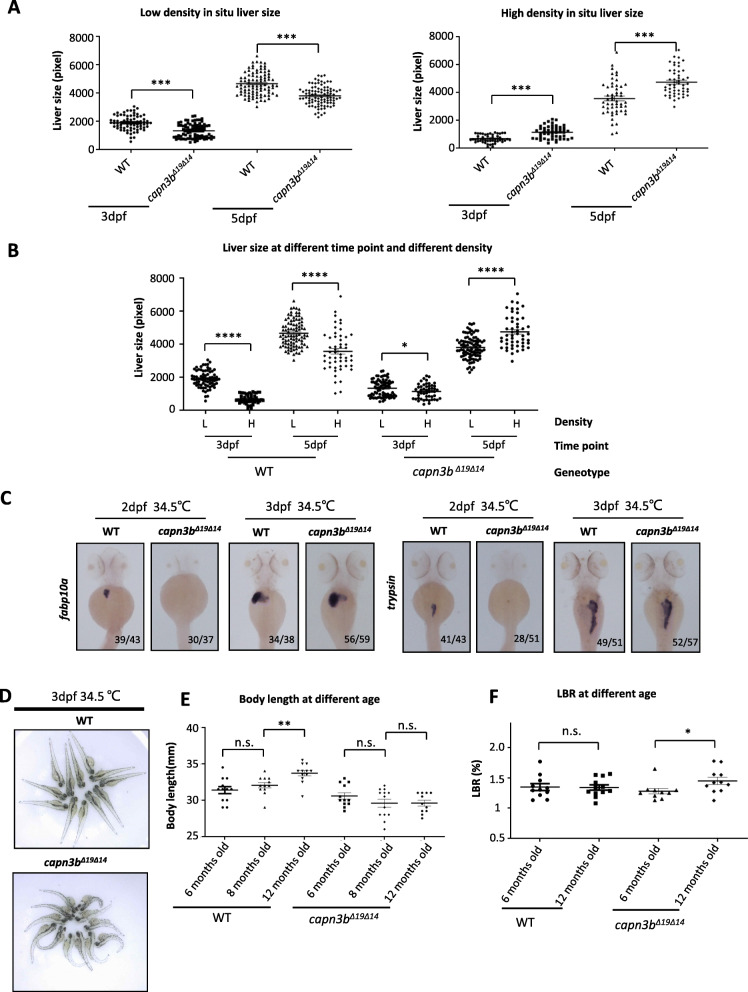

Fig. 2

Defective development of capn3b mutant zebrafish under environment stress. a, b WISH using the fabp10a probe on 3dpf- and 5dpf-old WT and capn3b^Δ19Δ14 embryos grown at the low (60 embryo/dish) (left panel) and high (120cm²/dish) (right panel) rearing density in a 9 cm-diameter dish (a). In (b), the data of liver sizes were compared between 3dpf- and 5dpf-old WT or between 3dpf- and 5dpf-old capn3b^Δ19Δ14 mutant embryos under low (L) and high (H) rearing intensity. c WISH using the fabp10a and trypsin probes on WT and capn3b^Δ19Δ14 embryos at 2dpf and 3dpf. Embryos were shifted to 34.5 °C at 12 hpf till the time of sample harvesting. Numerator/denominator: number of embryos displayed the shown phenotype over total number of genotyped embryos. d Photo images showing the curved body phenotype displayed by the 3dpf-old capn3b^Δ19Δ14 mutant but not WT embryos grown at 34.5 °C. e Body lengths of 6-, 8- and 12-months-old WT and capn3b^Δ19Δ14 fish. f LBR of 6- and 12-months-old WT and capn3b^Δ19Δ14 fish. Student’s T-test for statistical analyses, *, p < 0.05; ***, p < 0.001; ****, p < 0.0001
