Fig. 7

ID: ZDB-IMAGE-200629-17
Publication: Chen et al., 2020 - Capn3 depletion causes Chk1 and Wee1 accumulation and disrupts synchronization of cell cycle reentry during liver regeneration after partial hepatectomy
All Figures: Figures for Chen et al., 2020


Figure Caption

Fig. 7

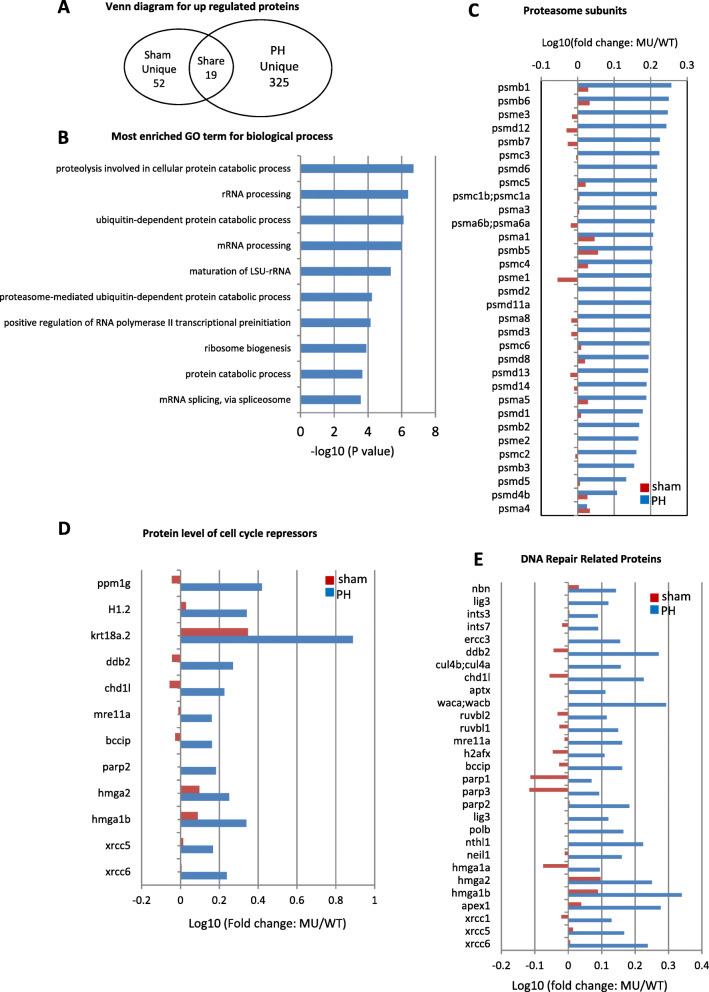

Up-regulation of proteins related to 26S proteasome and cell cycle arrest in capn3b^Δ19Δ14 at 3dpH. a Venn diagram showing the number of ‘Sham unique’, ‘PH unique’ and ‘Shared’ proteins up-regulated in capn3b^Δ19Δ14 (cutoff value: MU/WT > 1.45). b Top 10 categories obtained from GO analysis of biological process for the 325 uniquely up-regulated proteins in capn3b^Δ19Δ14 at 3dpH. c-e Comparison of the change (in log10 value of the ratio of MU/WT) of 32 26S proteasome subunits (c), 12 cell cycle negative regulators (d) and 29 DNA-repair related proteins (e) between the PH-group and sham-group at 3dpH
