FIGURE 4

ID

ZDB-IMAGE-200619-18

Genes

gins1

Publication

Varga et al., 2020 - Tissue-Specific Requirement for the GINS Complex During Zebrafish Development

All Figures

Figures for Varga et al., 2020


Figure Caption

FIGURE 4

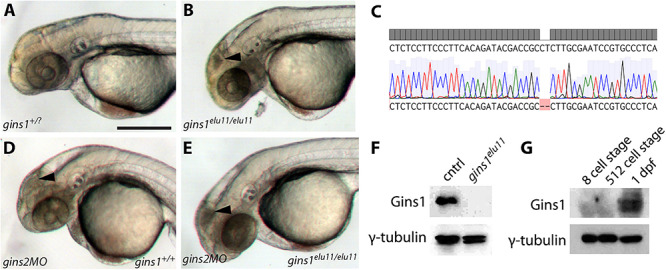

Gins1 deficient and Gins1, Gins2 double-deficient embryos show comparable cell death phenotypes in eyes and tecta. (A,B) The gins1^elu11 frameshift allele created through genome editing shows retinal and tectal apoptosis at 2 dpf, similar to other CMG mutants. (C) Sanger sequencing of gins1^elu11/elu11 embryos shows the presence of the homozygous c.250_251delCT mutation. (D,E) Phenotype of gins1 mutant embryos and their siblings injected with 100 μM gins2MO. (F) Western blot analysis of protein lysates from 2 dpf control and gins1^elu11/elu11 embryos probed with Gins1 and γ-tubulin antibodies. (G) Western blot analysis of protein lysates from wildtype embryos at the indicated stages probed with Gins1 and γ-tubulin antibodies. Scale bar: 250 μm.

Figure Data

Expression / Labeling details

Phenotype details
