Fig. 2

ID

ZDB-IMAGE-200614-5

Genes

sox2

Publication

Castro et al., 2020 - Hcfc1a regulates neural precursor proliferation and asxl1 expression in the developing brain

All Figures

Figures for Castro et al., 2020


Figure Caption

Fig. 2

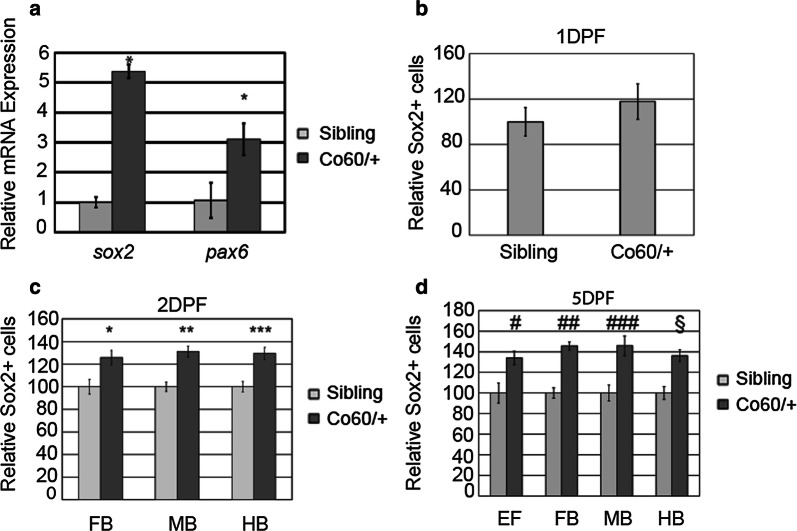

The hcfc1a^co60/+ allele increases the number of Sox2⁺ cells in the developing brain. a Quantitative real time PCR analyzing the relative expression of sox2 and pax6 in wildtype siblings (Sibling) and the hcfc1a^co60/+ allele (Co60/+). N = 7 larvae per group/biological replicate *p < 0.05. b–d Quantification of the number of Sox2⁺ cells at 1 day post fertilization (DPF) (b), 2 DPF (c), and 5 DPF (d) in the early forebrain (EF), forebrain (FB), midbrain (MB), and hindbrain (HB). *p = 0.006828, **p = 1.13873E−05, ***p = 0.000107, ^#p = 0.010168, ^##p = 4.55E−06, ^###p = 1.97E−07, and ^§p = 0.005476. In b total number of animals is Sibling (N = 6) and hcfc1a^co60/+ (N = 6), c total animals is Sibling (N = 7) and hcfc1a^co60/+ (N = 7), and d total animals is Sibling (N = 4) and hcfc1a^co60/+ (N = 4). All error bars represent standard error of the mean

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ BMC Neurosci.
