Fig. 5.

ID

ZDB-IMAGE-200608-20

Antibodies

Ab1-col2a

Publication

Ates et al., 2020 - Deficiency in the endocytic adaptor proteins PHETA1/2 impair renal and craniofacial development

All Figures

Figures for Ates et al., 2020


Figure Caption

Fig. 5.

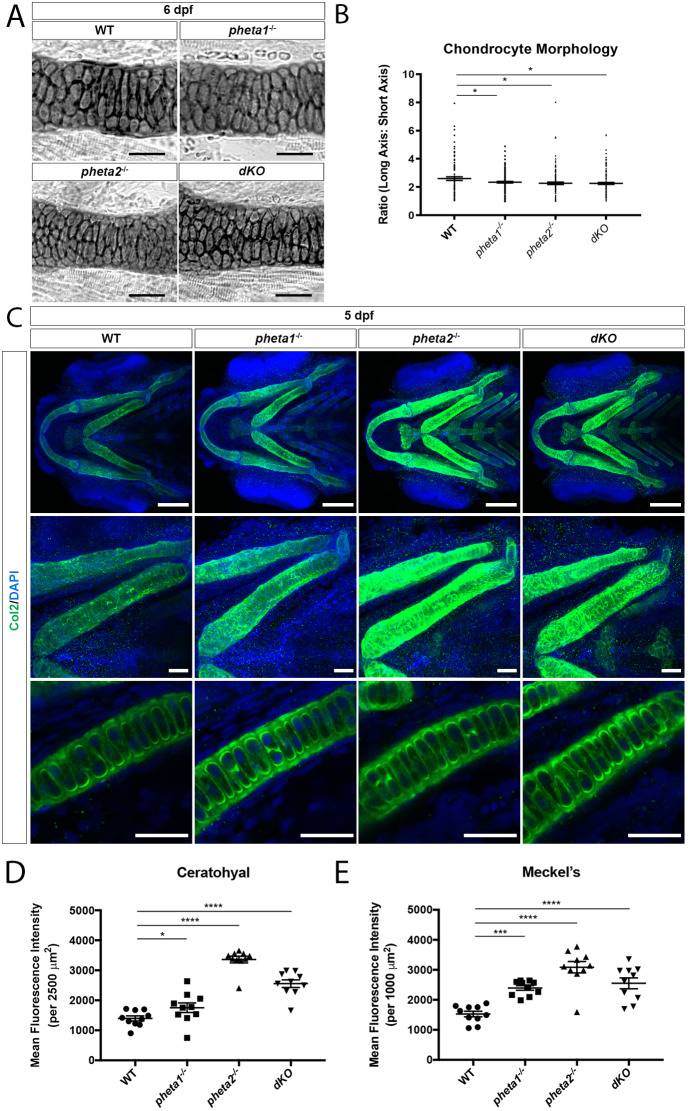

Loss of pheta1/2 disrupts chondrocyte maturation. (A) Ceratohyal cartilage, stained with Alcian Blue in flat-mount preparation. Scale bars: 50 µm. (B) Chondrocyte morphology analysis in ceratohyal cartilage (within a 200 µm² area). (C) Top row: Z-projection ventral view of larvae immunostained for Col2 (green). Nuclei are labeled with DAPI (blue). Scale bars: 100 μm. Middle row: higher-magnification Z-projection images of corresponding ceratohyal cartilage. Scale bars: 25 μm. Bottom row: higher-magnification single optical section images of corresponding ceratohyal cartilage, depicting extracellular secretion of type II collagen. Scale bars: 25 µm. (D,E) Quantification of mean fluorescence intensity in the ceratohyal (D) and Meckel's cartilage (E) in 5 dpf larvae. *P<0.05, ***P<0.001, ****P<0.0001.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dis. Model. Mech.
