Figure 6—figure supplement 2.

ID: ZDB-IMAGE-200530-12
Source: Figures for Williams et al., 2020


Figure Caption

Figure 6—figure supplement 2. Time-course of Nodal inhibition in <italic>ndr2</italic>-expressing explants.

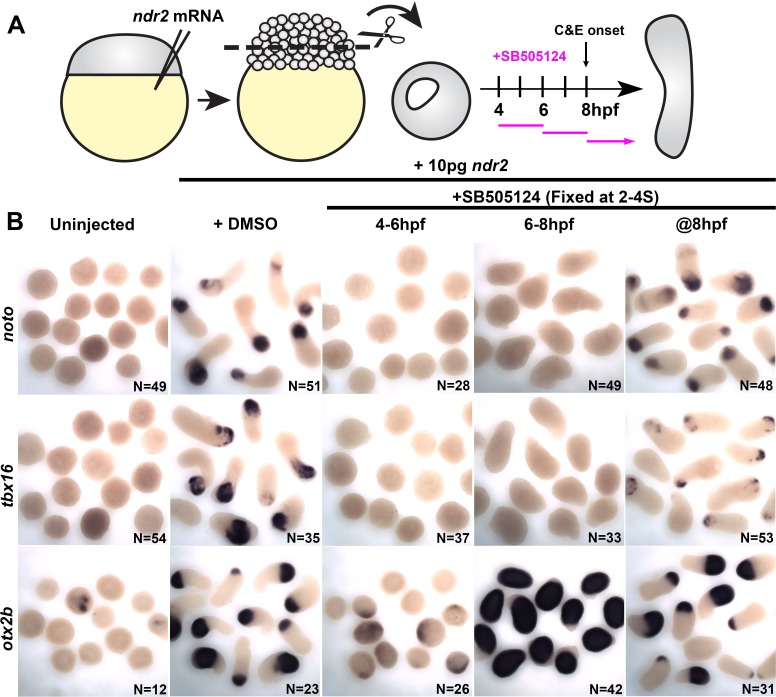

(A) Diagram of the time course of SB-505124 (SB) treatment of ndr2-expressing explants, as in Figure 6. (B) Representative images of WISH for the transcripts indicated in explants from WT embryos injected with 10 pg ndr2 RNA, treated with SB at the indicated time points, and fixed at the equivalent of the 2–4 somite stage from four independent trials.
