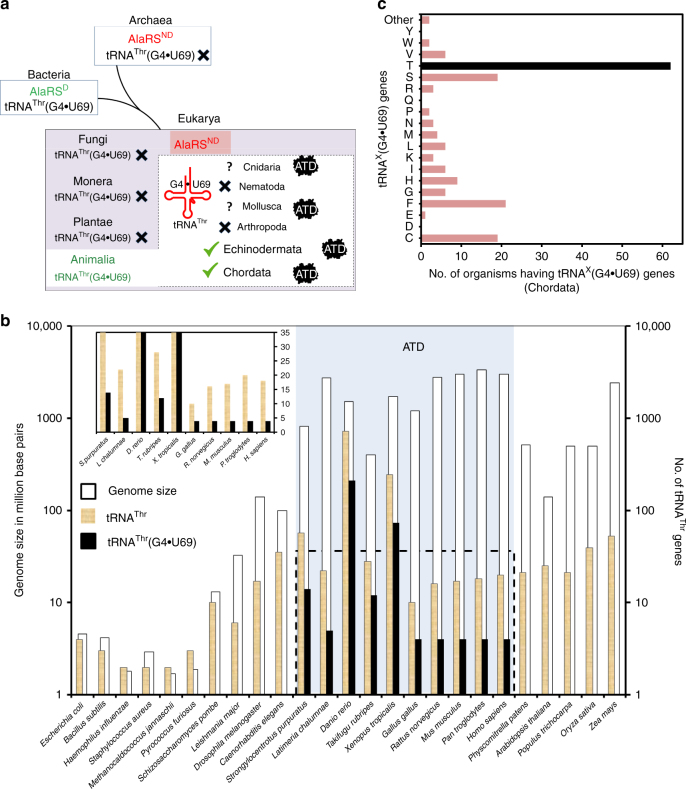

Enrichment of tRNA^Thr(G4•U69) genes and presence of ATD show strict association. a Distribution of AlaRS^ND, tRNA^Thr(G4•U69) genes, and ATD in different domains of life. tRNA gene sequences of Cnidaria and Mollusca are not available in the database. b Bar graph (logarithmic scale) depicting genome size, total number of tRNA^Thr genes, and number of tRNA^Thr(G4•U69) genes occurring in representative organisms belonging to all the three domains of life. Inset showing the number of total tRNA^Thr genes and tRNA^Thr(G4•U69) genes in normal scale; genome size has not been shown for the sake of clarity. Presence of ATD is highlighted in light blue box. Data for occurrence of AlaRS^ND and tRNA^Thr(G4•U69) genes have been taken from reference ⁵³. c Bar graph showing the number of organisms containing (G4•U69)-harboring tRNA genes which code for tRNAs specific for various proteinogenic amino acids
