Fig. 3

ID: ZDB-IMAGE-200325-52
Publication: Ren et al., 2020 - Igf2bp3 maintains maternal RNA stability and ensures early embryo development in zebrafish
All Figures: Figures for Ren et al., 2020


Figure Caption

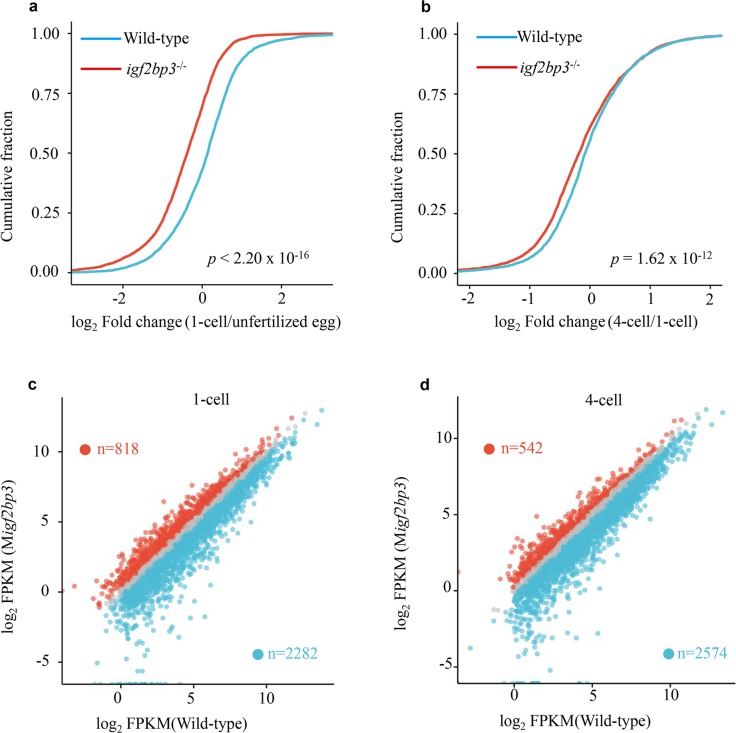

Fig. 3 <italic>igf2bp3</italic> deficiency results in accelerated decay of maternal mRNA.

a, b Cumulative frequency of maternal mRNA log₂ fold changes in wild type and Migf2bp3 from unfertilized eggs to 1-cell-stage embryos and 1- to 4-cell embryos, respectively. The p values were calculated using two-sided Wilcoxon and Mann–Whitney test. c, d Scatter plots showing the enrichment of dysregulated genes in wild type and Migf2bp3 embryos at 1- and 4-cell stages. The numbers of significantly downregulated genes (blue dots) or upregulated genes (red dots) were shown.

Figure Data

Phenotype details
