Figure 1

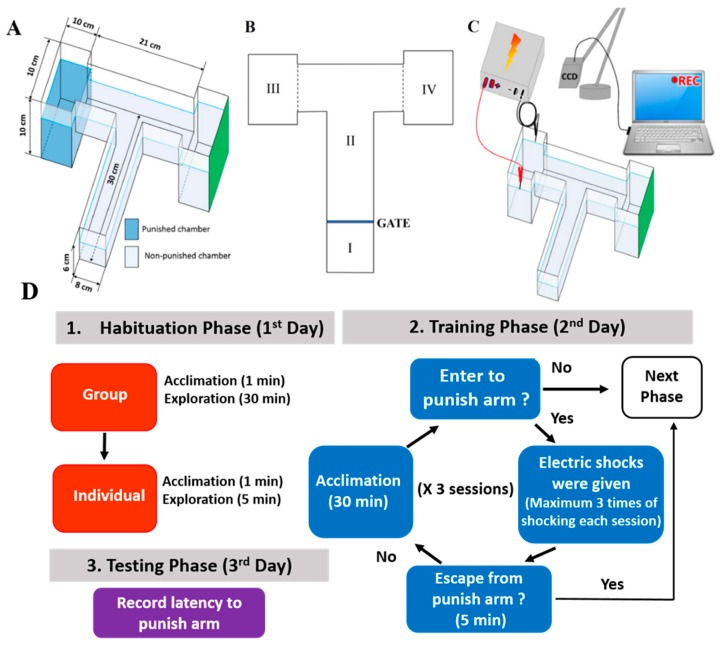

Experimental design of the T-maze apparatus in the zebrafish model. (A) Illustration of the T-maze dimensions. (B) Three sections were defined: the start chamber (Zone I), the novel arm (Zone II), and the choice arm (swim to Zones III and IV). The depth of water in the novel arm was maintained at 35 and 85 mm in two of the deeper choice arms (C) The T-maze was equipped with an electric shock device (1–2 V, 0.3–0.5 mA), video recorder, and the data were analyzed by GraphPad Prism. (D) Flow diagram of the T-maze protocol.
