Fig. S2

ID
ZDB-IMAGE-200318-30
Source
Figures for Schwayer et al., 2019
Figure Caption

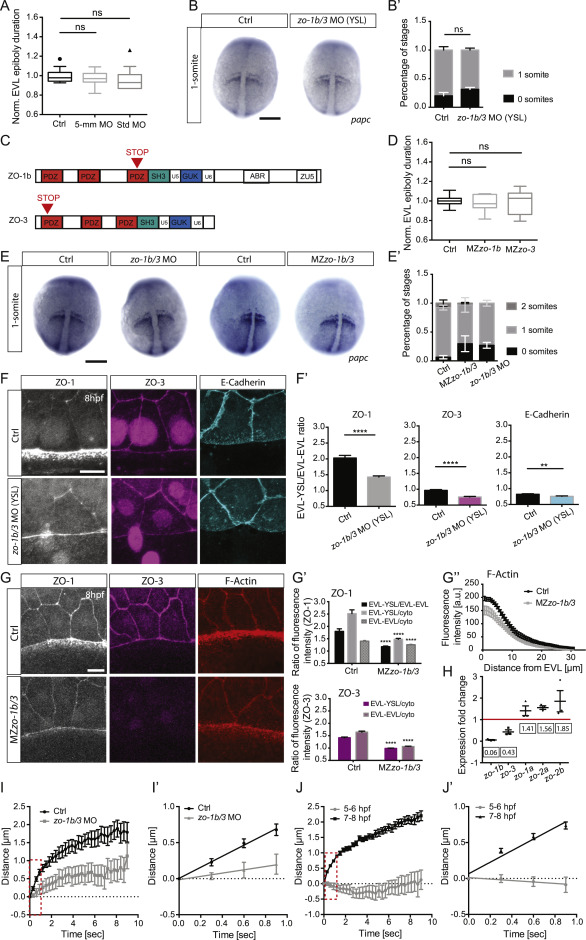

Fig. S2 zo-1b/3 Mutant and Morphant Analysis, Related to Figure 2 (A) Plot of total time required for EVL to complete epiboly normalized to the average time needed by control (Ctrl) embryos injected with either phenol-red (Ctrl), zo-1b/3 5-base mismatch Ctrl MO (5mm-MO) or standard negative Ctrl MO (Std MO) into the YSL. Data are mean ± s.e.m. Kruskal-Wallis test with Dunn’s multiple comparisons test. Ctrl with N = 4, n = 14; zo-1b/3 MO with N = 3, n = 12; standard control MO with N = 3, n = 11. (B) Dorsal view of YSL-injected Ctrl (phenol-red, YSL-Ctrl) and zo-1b/3 morphant (YSL-morphant) embryos at 1-somite stage (10.5 hpf) labeled by in situ hybridization for papc outlining the forming somites. Scale bar, 200 μm. (B’) Bar plot of stage distribution (categorized in 0 and 1 somite stages as revealed by papc in situ hybridization) for the conditions described in (B). Data are mean ± s.e.m. 80% of Ctrl-YSL embryos and 69% of zo-1b/3 YSL-morphants showed 1 somite at 10.5 hpf. Mann-Whitney test. YSL-Ctrl with N = 3, n = 36; YSL-morphant with N = 3, n = 45. (C) Mutation sites in MZzo-1b and MZzo-3 mutants. Red triangles indicate the insertion sites of the STOP codon. (D) Plot of EVL tissue spreading, expressed as height of EVL (hEVL) normalized to total embryo height (hTOT), as a function of time normalized to average time needed by Ctrl embryos shown for wild-type (wt) Ctrl, and MZzo-1b and MZzo-3 single mutants. Data are mean ± s.e.m. One-way ANOVA with Tukey’s multiple comparisons test. Wt (Ctrl) with N = 4, n = 27; MZzo-1b with N = 3, n = 16; and MZzo-3 with N = 3, n = 18. (E) Dorsal view of Ctrl (phenol-red, Ctrl) and zo-1b/3 morphant embryos injected at the 1-cell stage, and of wt and MZzo-1b/3 mutant embryos labeled at 10.5 hpf by in situ hybridization for papc outlining the forming somites. Scale bar, 200 μm. (E’) Plot of stage distribution (categorized in 0, 1 and 2-somite stages as revealed by papc in situ hybridization) for the condition described in (E). 86% of Ctrl, 67% of MZzo-1b/3 embryos and 73% of zo-1b/3 morphants showed 1 somite at 10.5 hpf. Data are mean ± s.e.m. Cumulative link mixed model was used to determine p values in R. Ctrl versus MZzo-1b/3 mutants with p = 0.0002 and Ctrl versus zo-1b/3 morphants with p = 0.04. Ctrl with N = 2, n = 26; morphant with N = 3, n = 43; wt Ctrl with N = 4, n = 72 and mutant with N = 5, n = 77. (F) Maximum intensity projections (MIPs) of ZO-1 (left column), ZO-3 (middle column) and E-cadherin (right column) localization at the EVL-YSL boundary in YSL-Ctrl (upper row) and zo-1b/3 YSL-morphant (lower row) embryos at 8 hpf. ZO-1, ZO-3 and E-Cadherin were detected by immunohistochemistry. Scale bar, 20μm. (F’) Plot of EVL-YSL junctional intensity normalized to EVL-EVL junctional intensity at 8 hpf for the conditions described in (F). Data are mean ± s.e.m. Statistical test for ZO-1 intensity with Mann-Whitney test, ZO-3 intensity with unpaired t test and E-Cadherin intensity with unpaired t test; ZO-1: N = 2, YSL-Ctrl with n = 30 and zo-1b/3 YSL-morphant with n = 40; ZO-3: N = 2, YSL-Ctrl with n = 42 and zo-1b/3 YSL-morphant with n = 59. E-Cadherin: N = 3, Ctrl with n = 51 and zo-1b/3 YSL-morphant with n = 54. (G) MIPs of ZO-1, ZO-3 and F-actin localization at the EVL-YSL boundary in wt and MZzo-1b/3 mutant embryos at 8 hpf. ZO-1 and ZO-3 were detected by immunohistochemistry, and F-actin by Phalloidin. ZO-1 antibody likely detects both zebrafish ZO-1a and ZO-1b, suggesting that the remaining signal in the MZzo-1b/3 mutant reflects ZO-1a protein expression. (G’) Plot of EVL-YSL junctional intensity normalized to EVL-EVL junctional intensity, and EVL-YSL junctional intensity together with EVL-EVL junctional intensity normalized to cytoplasmic intensity at 8 hpf for the conditions shown in (G). Data are mean ± s.e.m. Statistical test for ZO-1: EVL-YSL/EVL-EVL with Mann-Whitney test, and EVL-YSL/cyto and EVL-EVL/cyto with unpaired t test; ZO-3: EVL-YSL/cyto and EVL-EVL/cyto with unpaired t test. N = 2, wt with n = 31 and MZzo-1b/3 mutant with n = 33. (G’’) Plot of F-Actin fluorescence intensity within the YSL as a function of distance from EVL margin for the conditions described in (D). F-actin was detected by Phalloidin. Data are mean ± SEM. [a.u.], arbitrary units. N = 2, wt with n = 7 and MZzo-1b/3 mutant with n = 7. (H) Compensatory expression changes of zo genes in MZzo-1b/3 mutant embryos normalized to the expression level of a housekeeping gene (elongation factor 1α). Fold change reflects the relative change of expression levels in MZzo-1b/3 mutant compared to wt embryos in qRT-PCR. Data are mean ± SEM. Red solid line indicates 1-fold change in expression, demarcating the boundary between increase (> 1) and decrease (< 1) of expression levels of the five different zo genes (N = 3). (I and J) Plot of junctional opening (distance in μm) of the EVL-YSL boundary marked by Myosin-2-GFP after UV laser cutting at late (8 hpf) stage of EVL epiboly in YSL-Ctrl and zo-1b/3 YSL-morphant (I) embryos and in wt embryos (J) at mid (6 hpf) and late (8 hpf) stages of EVL epiboly as a function of time after cutting. Data are mean ± SEM. Red dashed boxes indicate regions for calculation of initial recoil velocity shown in (I’,J’). (I’ and J’) Plot of the first four time-points from (I,J) with linear fit to extract initial recoil velocity shown in Figures 2E’’ and 2F’’). Data are mean ± SEM. N,n see (Figures 2E–2F). ∗∗∗∗p < 0.0001; ∗∗p < 0.01; ns, not significant; n, number of embryos (A, B’, D, E’, and G’’) and cells (F’ and G’).

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cell, 179, Schwayer, C., Shamipour, S., Pranjic-Ferscha, K., Schauer, A., Balda, M., Tada, M., Matter, K., Heisenberg, C.P., Mechanosensation of Tight Junctions Depends on ZO-1 Phase Separation and Flow, 937-952.e18, Copyright (2019) with permission from Elsevier. Full text @ Cell
