ZFIN Image: Huang et al., 2020, Figure 1


Figure Caption

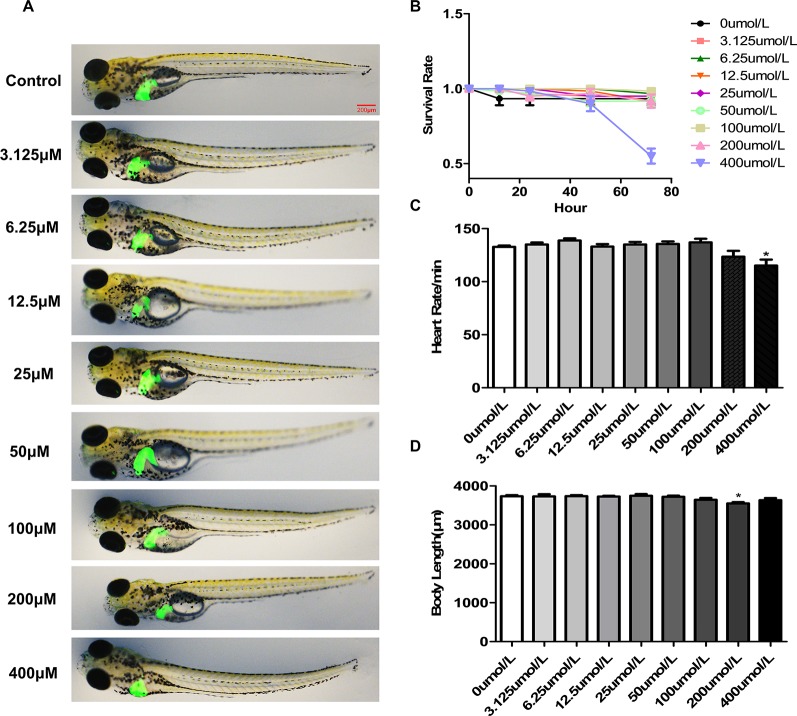

Figure 1

The toxicology of p-HAP in zebrafish larvae. (A) The developmental malformations in zebrafish larvae exposed to the indicated concentrations of p-HAP for 72 h. (B) Effects of different concentrations of p-HAP on the survival rate of zebrafish larvae. (C) Heart rate of zebrafish larvae exposed to different concentrations of p-HAP. (D) Body length of zebrafish larvae exposed to different concentrations of p-HAP. The data are displayed as the means ± SD, n = 10. (*P < 0.05 vs the control group).

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front Pharmacol
