Figure Caption

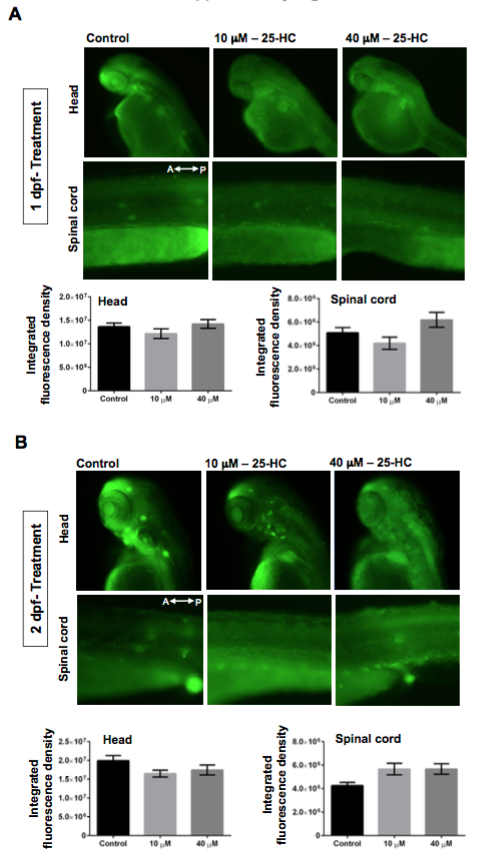

Fig. S2
Administration of 25-HC at stages post fertilization does not induce cell death: Acridine Orange staining on larvae treated with 25-HC at 1 dpf (A) and 2 dpf (B) showed no cell death in the brain and spinal cord. The graphs represent quantification of the net fluorescence upon Acridine orange staining. Each trial has a n of 7 for control and treated, repeated over 3 trials. A,P: Anterior and posterior side of the embryos respectively.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Neurotoxicology
