Fig. 5

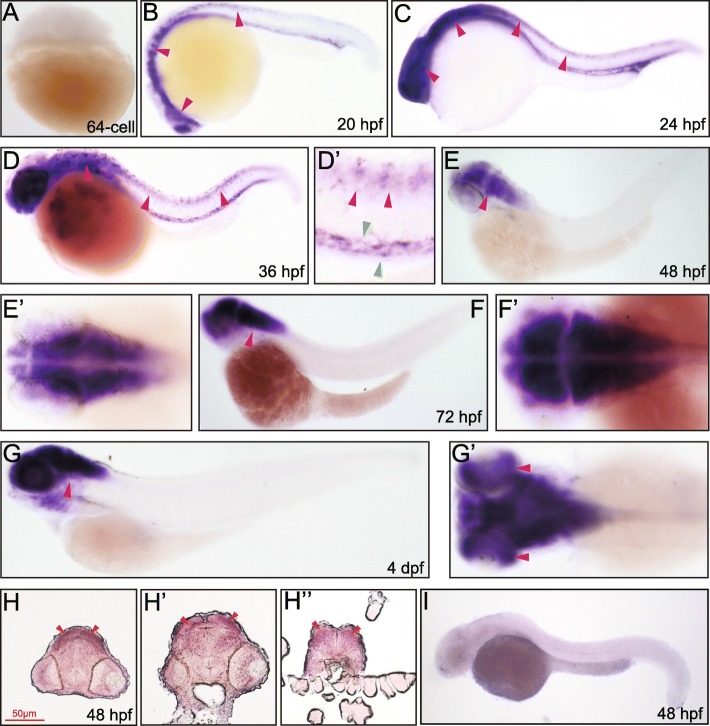

Whole mount in situ and transverse section hybridization analysis of rab11bb in zebrafish embryos. A 64 cell, lateral view. B 20 hpf, lateral view, arrowheads indicate brain and spinal cord. C 24 hpf, lateral view, arrowheads indicate brain and spinal cord. D 36 hpf, lateral view, arrowheads indicate spinal cord. D’ 36 hpf, dorsal view, red arrowheads indicate spinal cord, green arrowheads indicate pronephric duct. E 48 hpf, lateral view, arrowhead indicates brain. E’ 48 hpf, dorsal view. F 72 hpf, lateral view, arrowhead indicates ear. F’ 72 hpf, dorsal view. G 4 dpf, lateral view, arrowhead indicates pharyngeal arches. G’ 96 hpf, dorsal view, arrowhead indicates retina. H 48 hpf, the trunk transverse section of the embryonic forebrain, arrowheads indicate cerebral cortex. H’ 48 hpf, the trunk transverse section of the embryonic midbrain, arrowheads indicate cerebral cortex. H” 48 hpf, the trunk transverse section of the embryonic hindbrain, arrowheads indicate cerebral cortex. I 48 hpf, lateral view, embryos stained with the sense rab11bb probe
