ZFIN Image: Gurevich et al., 2019, Fig. 5.


Figure Caption

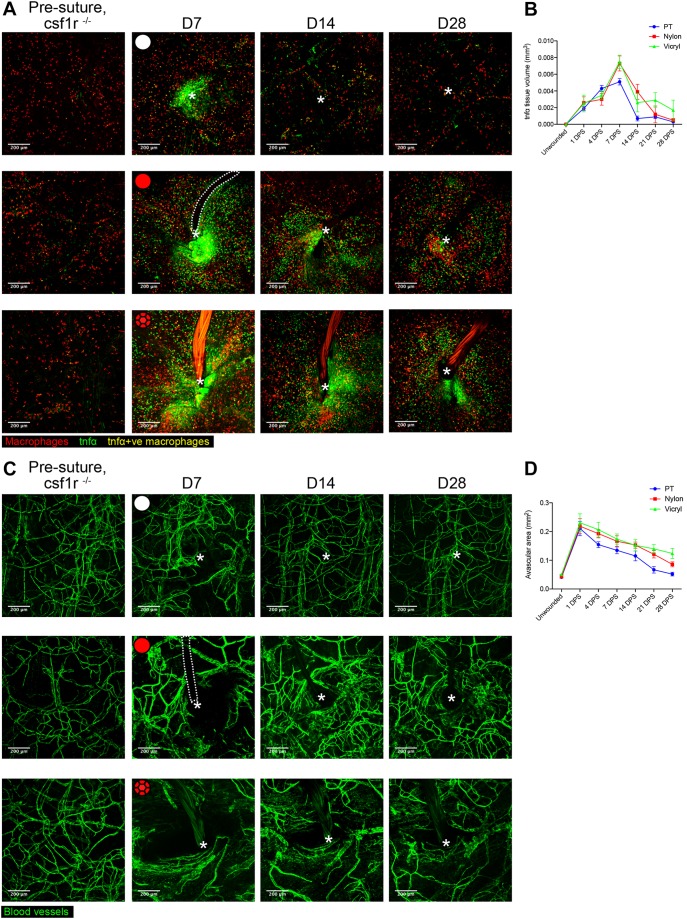

Fig. 5.

Genetic immunosuppression results in decreased TNFα expression and reduced avascular zone. (A) Representative images of csf1ra^−/− Tg(tnfα:GFP); Tg(mpeg:mCherry) double transgenic adult zebrafish immediately prior to and following suture pull through (PT, top row, white circle), or implantation of nylon (middle row, red circle) or vicryl suture (bottom row, red braided circle), at indicated time points. The area of wounding or implantation is marked by a white asterisk; the dotted lines indicate nylon suture. n=6 independent fish per condition. (B) Quantification of the mean±s.d. altered inflammatory area surrounding the wound/suture, measured from images in A. (C) Representative images of Tg(fli:GFP) transgenic adult zebrafish immediately prior to and following suture pull through (top row, white circle), or implantation of nylon suture (middle row, red circle) or vicryl suture (bottom row, red braided circle), at indicated time points. The area of wounding or implantation is marked by a white asterisk; the dotted lines indicate nylon suture. n=6 independent fish per condition. (D) Quantification of mean±s.d. avascular zone immediately adjacent to wound/suture, measured from images in C. Scale bars: 200 μm.
