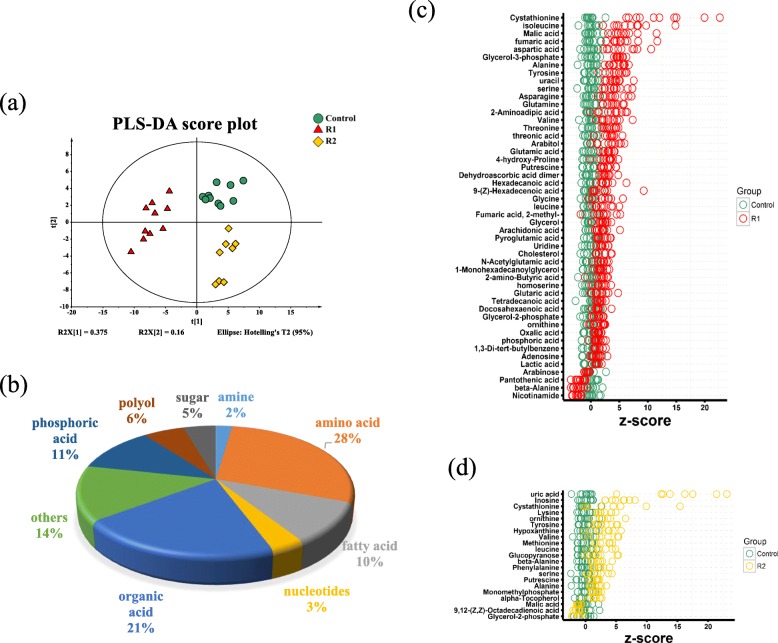

Metabolic profiles of zebrafish liver during refeeding. a Score plot of the PLS-DA model from all detected metabolites. b Category of detected metabolites. c Z-score scatter diagrams of differential metabolites in R1 (refed 3 days) period based on control. d Z-score scatter diagrams of differential metabolites in R2 (refed 10 days) period based on control. For c and d, the data from tested groups were separately scaled to the mean and standard deviation of control. Each point represented one metabolite in one technical repeat and was colored by sample types
