Figure 6

ID
ZDB-IMAGE-191230-1687
Source
Figures for Yeo et al., 2019
Figure Caption

Figure 6

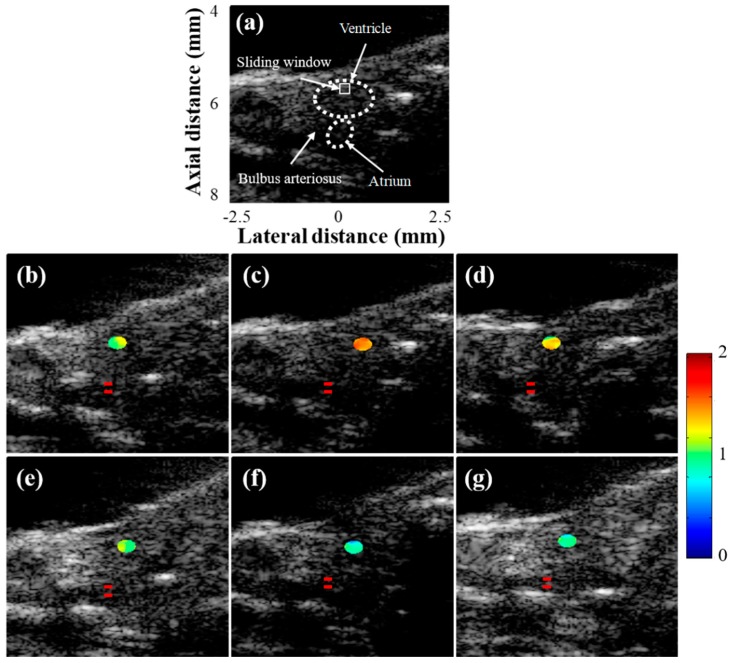

(a) B-mode image acquired from the adult zebrafish and Nakagami images overlaid on B-mode images from the zebrafish (b) one week prior to ventricular amputation, (c) 3, (d) 7, (e) 14, (f) 21 and (g) 32 days post-amputation (dpa). The Nakagami image was only constructed at the amputated regions. The location of Doppler gates in each image are indicated with red lines.
