Figure 5

ID: ZDB-IMAGE-191230-1686
Source: Figures for Yeo et al., 2019


Figure Caption

Figure 5

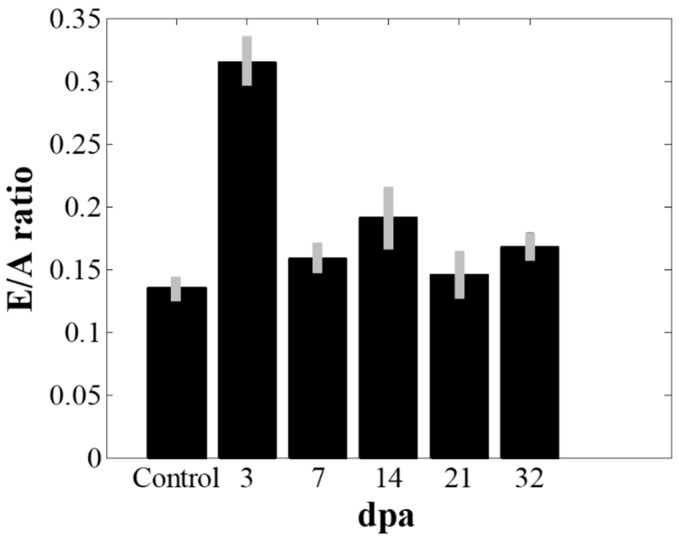

The changes of the E/A ratio values that represents the ratio of the peak velocity of blood flow in the early diastole (E-flow) to the peak velocity in the late diastole via atrial contraction (A-flow) before and after amputation. The E/A value increased at 3 dpa (p-value < 0.05) and recovered to the value before amputation. The error bars indicate the standard deviation in the data from five zebrafish.
