Fig 4

ID: ZDB-IMAGE-191230-1551
Publication: Sucharov et al., 2019 - Selective breeding modifies mef2ca mutant incomplete penetrance by tuning the opposing Notch pathway
All Figures: Figures for Sucharov et al., 2019


Figure Caption

Fig 4 Selective breeding just for ectopic bone penetrance modifies the behavior of the <italic>mef2ca</italic><sup><italic>b1086</italic></sup> mutant allele.

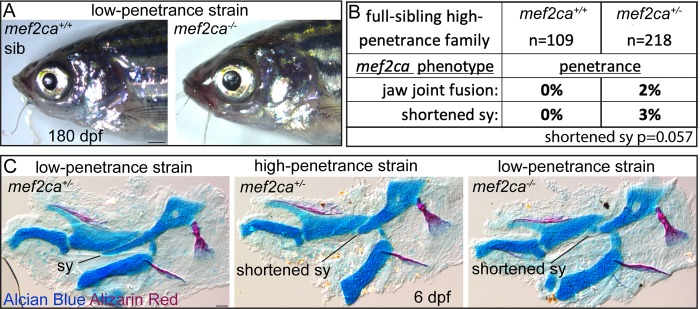

(A) Low-penetrance mef2ca heterozygous adults were intercrossed and offspring were grown to adulthood. Fin amputation and genotyping identified mef2ca homozygous adults, which were imaged alongside wild-type siblings. Scale bar: 1mm. (B) 6 dpf full-sibling individuals from a single high-penetrance family were stained with Alizarin Red (bone) and Alcian Blue (cartilage), then genotyped and mef2ca heterozygotes and homozygous wild types were scored for presence of all mef2ca-associated phenotypes. (C) 6 dpf Alizarin Red and Alcian Blue stained skeletons were dissected and flat mounted, lateral view. In these individuals, a shortened symplectic (sy) cartilage phenotype is evident in mef2ca heterozygotes from the high-penetrance strain and mef2ca homozygous mutants from the low-penetrance strain. Scale bar: 50 μm.
