Figure 2—figure supplement 2.

ID: ZDB-IMAGE-191230-153
Publication: Jung et al., 2019 - MicroRNA-mediated control of developmental lymphangiogenesis
All Figures: Figures for Jung et al., 2019


Figure Caption

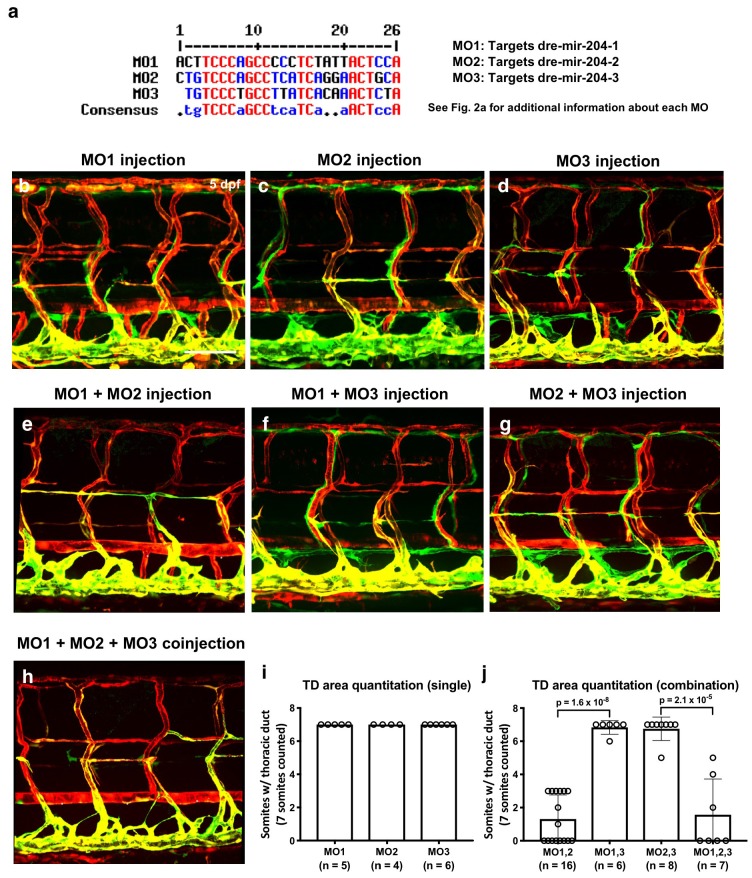

Figure 2—figure supplement 2. The effects of single or combined injections of mir-204 targeting MOs.

(a) Sequence alignment of MO1, 2, 3. (b-h) Representative confocal images of 5 dpf Tg(mrc1a:eGFP)^y251, Tg(kdrl:mCherry)^y171 double-transgenic animals injected with 0.5 ng of MO1 (b), MO2 (c), or MO3 (d); injected pairwise with 0.5 ng each of MO1+MO2 (e), MO1+MO3 (f), or MO2+MO3 (g), for a final combined MO dose of 1.0 ng in each case; injected with 0.5 ng each of MO1+MO2+MO3 (h), for a final combined MO dose of 1.5 ng. (i) Quantitation of the single MO injections in panels b-d. (j) Quantitation of the combined MO injections in panels e-h. All images are lateral views, rostral to the left. Scale bar: 100 μm (b). All graphs are analyzed by t-test and the mean ± SD is shown.
