FIGURE 2

ID
ZDB-IMAGE-191230-1142
Source
Figures for Vecchia et al., 2019
Figure Caption

FIGURE 2

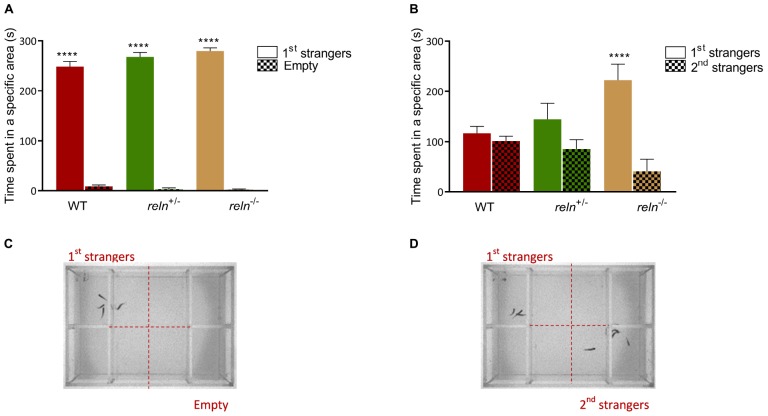

Social preference test. (A) Social preference. WT, reln+/– and reln–/– show a significant preference to spend time near a group of unfamiliar fish [1st strangers; p < 0.0001 for all genotypes; two-way ANOVA followed by Sidak’s post hoc, genotype factor: F(2,62) = 1.818, p = 0.17, stranger factor: F(1,62) = 2392, p < 0.0001, interaction genotype × stranger: F(2,62) = 4.418, p = 0.02]. (B) Preference for social novelty. Both WT and reln+/– spend an equal amount of time near both groups of unfamiliar fish (1st and 2nd strangers; p = 0.99 for WT and p = 0.38 for reln+/–). reln–/– do not switch preference to the second group of unfamiliar fish [2nd strangers; p < 0.0001; two-way ANOVA followed by Sidak’s post hoc, genotype factor: F(2,62) = 0.5184, p = 0.60, stranger factor: F(1,62) = 21.49, p < 0.0001, interaction genotype × stranger: F(2,62) = 6.886, p = 0.002]. n = 12 wild-type, n = 12 reln+/– and n = 10 reln–/–. ****p < 0.0001. Mean ± SEM. (C,D) Photographs showing the experimental setup for social preference (C) and preference for social novelty (D).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front. Behav. Neurosci.
