ZFIN Image: Toms et al., 2019, Fig. 4


Figure Caption

Fig. 4

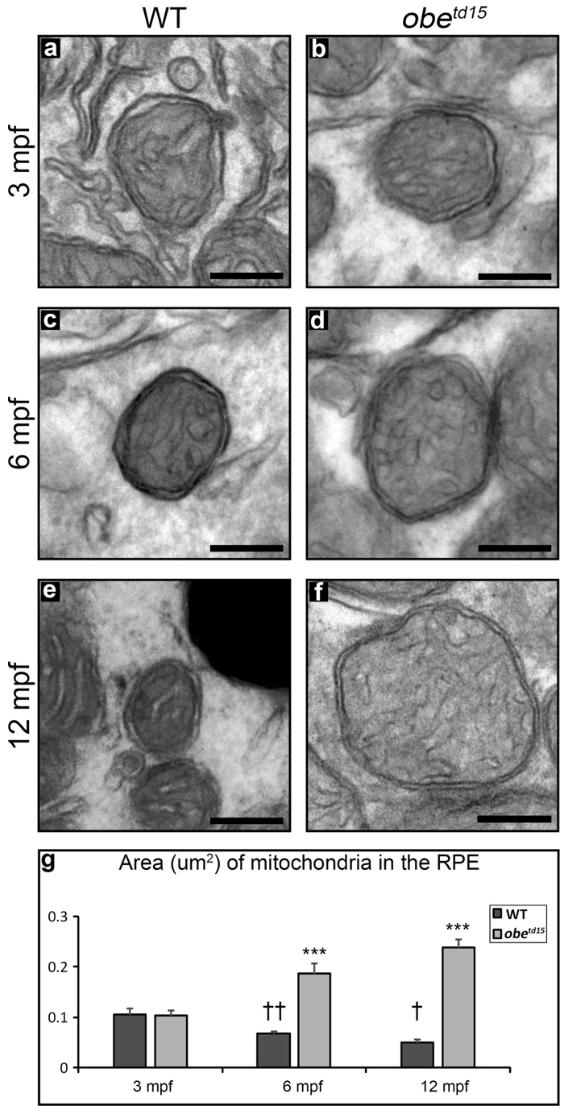

Increased mitochondrial size in the retinal pigment epithelium (RPE) of obe^td15 zebrafish. Mitochondrial size in the wild-type (WT) RPE at (a) 3 months post-fertilisation (mpf), (c) 6 mpf and (e) 12 mpf shows a decrease with age, while mitochondrial size in the obe^td15 RPE at (b) 3 mpf, (d) 6 mpf and (f) 12 mpf shows an increase with age. Mitochondrial area measured from TEM images displayed on bar chart (g). Results are mean ± SEM. 13 mitochondria measured per WT and mutant age group. Statistical significance relative to WT of different ages ^†p < 0.05, ^††p < 0.01. Statistical significance relative to WT against obe^td15 of the same age. ***p < 0.001. Scale bar = 200 nm.
