ZFIN Image: Sieber et al., 2019, Fig. 4


Figure Caption

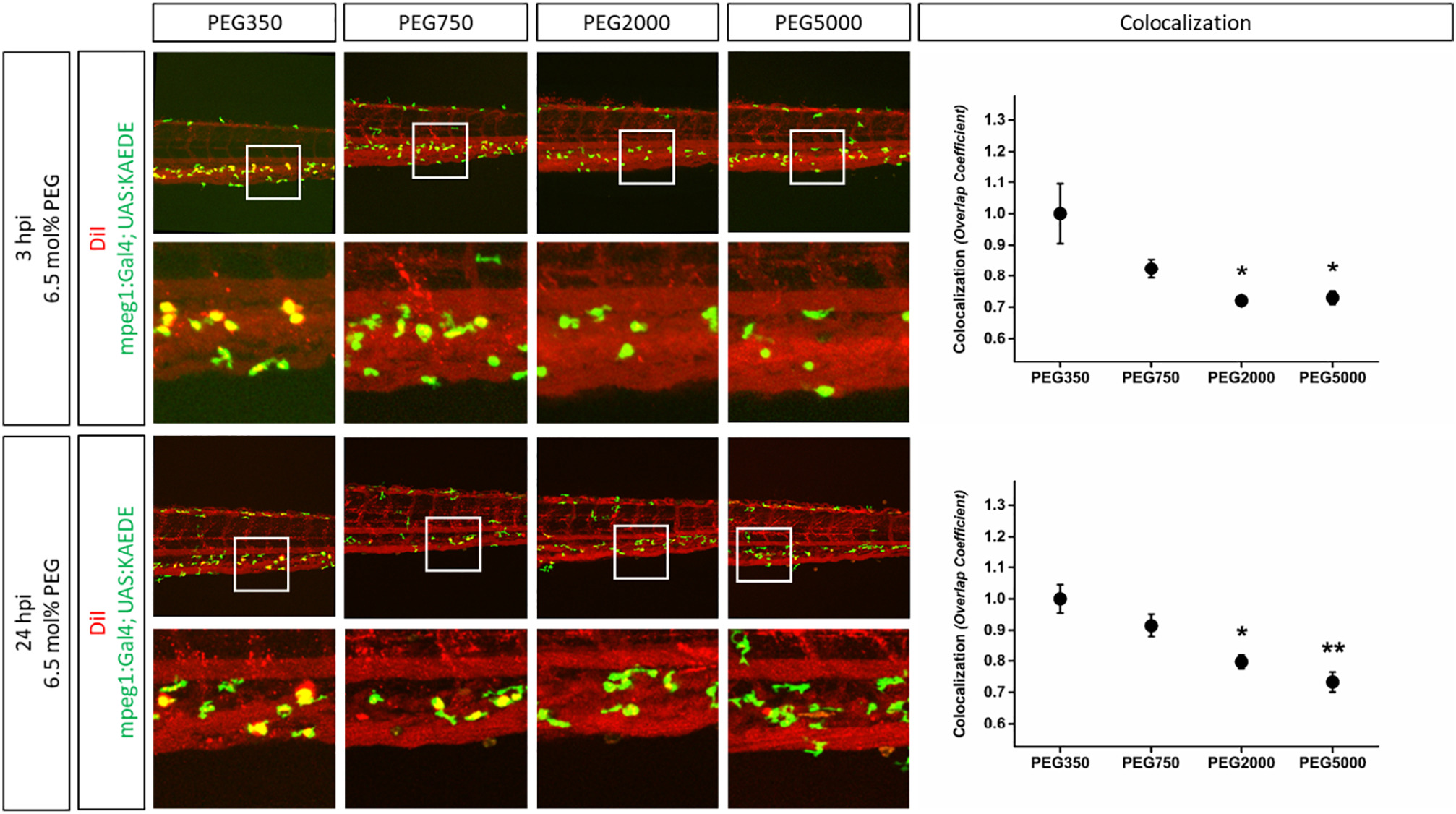

Fig. 4

Influence of PEG modifications on macrophage clearance in transgenic zebrafish. DiI labeled liposomes modified with the indicated PEG molecular weights were injected into the blood circulation of zebrafish 2 days post fertilization. Confocal images were acquired 3 and 24 h post injection (hpi). Colocalization analysis of green fluorescent macrophages (KAEDE) and DiI labeled liposomes was performed based on normalized overlap colocalization coefficients. Values are means ± SEM, n = 3. *P < 0.1 or **P < 0.05 (multiple comparison using ANOVA assuming equal variance and Bonferroni correction) as compared to 90 nm sized PEG350 liposomes.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Nanomedicine : nanotechnology, biology, and medicine, 17, Sieber, S., Grossen, P., Uhl, P., Detampel, P., Mier, W., Witzigmann, D., Huwyler, J., Zebrafish as a predictive screening model to assess macrophage clearance of liposomes in vivo, 82-93, Copyright (2019) with permission from Elsevier. Full text @ Nanomedicine
