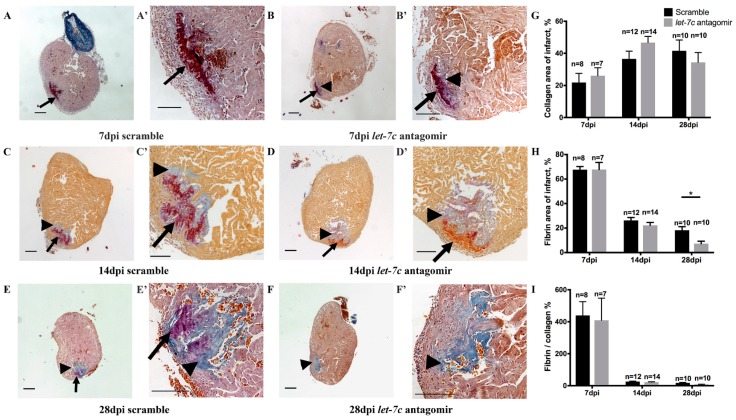

Collagen and fibrin quantified with AFOG staining at 7 dpi, 14 dpi and 28 dpi. Intact myocardium is stained in orange, fibrin in red and collagen in blue (A–F); higher magnifications of the panels on the left (A’–F’). Arrows point to fibrin and arrowheads to collagen (A–F; A’–F’). Collagen (G), fibrin (H) and fibrin/collagen% (I) (n = 7 for 7 dpi antagomir, n = 8 for 7 dpi scramble, n = 14 for 14 dpi antagomir, n = 12 for 14 dpi scramble, n = 10 for 28 dpi antagomir and scramble). Scale bar: 200 μm. * p ≤ 0.05.
