Figure 1

ID: ZDB-IMAGE-190723-2263
Source: Figures for Dütting et al., 2011


Figure Caption

Figure 1

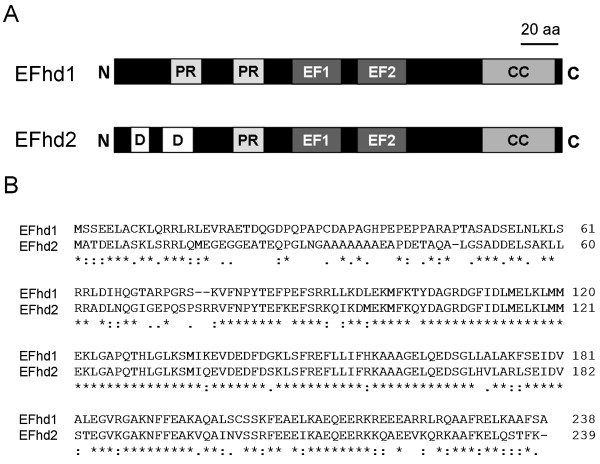

Predicted secondary structures and sequence comparisons of EFhd2 and EFhd1. a) Predicted secondary structures of murine EFhd1 and EFhd2 (240 aa) (http://elm.eu.org). PR: proline-rich elements (potential SH3 domain-binding sites), EF: EF-hands, CC: coiled-coil domain, D: disordered region.

b) Aligment of murine EFhd1 (Q9D4J1) and EFhd2 (Q9D8Y0) sequences using ClustalW2 (http://www.ebi.ac.uk/clustalw). Amino acid (aa) positions are marked on the right. "*", identical aa, ":", conserved aa, "." semi conserved aa.
