Fig. 6.

ID

ZDB-IMAGE-190723-2005

Antibodies

Ab11-casp3

Source

Figures for Reuter et al., 2019


Figure Caption

Fig. 6.

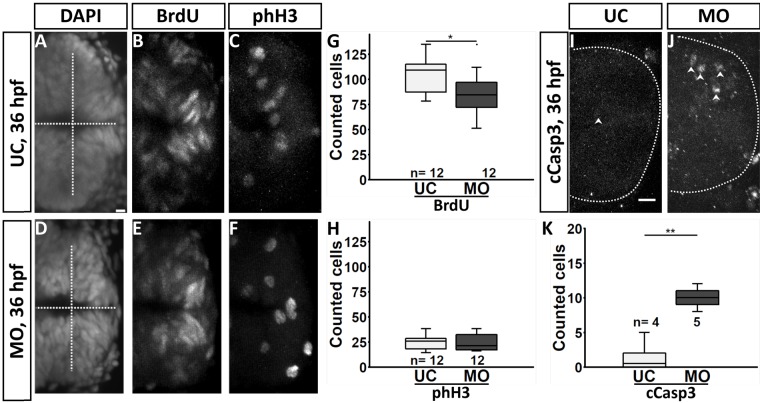

fgf3 impairment results in reduced proliferation and increased cell death in the posterior hypothalamus at 36 hpf. (A–F,I,J) Confocal maximum intensity projections of uninjected control (UC) and fgf3 morphant (MO) siblings immunostained for BrdU and phospho-histone H3 (phH3) counterstained with DAPI, or for cleaved caspase 3 (cCasp3) at 36 hpf. Dashed lines indicate ventricle in A and D, and outer posterior border of the hypothalamus in I and J. Examples of cCasp3 positive cells are indicated (arrowheads). Anterior is to the left. Scale bars: 10 µm. (G,H,K) Quantifications of BrdU, phH3 and cCasp3 positive cells after fgf3 impairment. Tukey boxplots show median, 25–75% percentile, IQR whiskers and outliers. n=number of analysed individuals. *P>0.05, **P>0.01.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Biol. Open
