Figure 3—figure supplement 1.

ID: ZDB-IMAGE-190723-1109
Publication: Carretero-Ortega et al., 2019 - GIPC proteins negatively modulate Plexind1 signaling during vascular development
All Figures: Figures for Carretero-Ortega et al., 2019


Figure Caption

Figure 3—figure supplement 1. Penetrance and expressivity of Se-DLAV truncations in DMSO-treated and SU5416-treated WT and embryos and <italic>plxnd1<sup>skt6</sup></italic> mutants at 32 hpf.

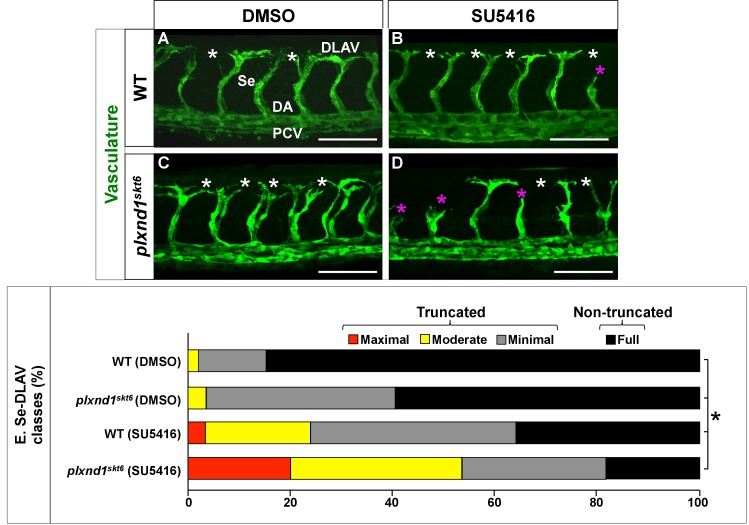

(A) Penetrance bar graph. Percentage of embryos of the indicated combinations of genotypes and treatments with Se-DLAV truncations (gray; a summation of the ‘minimal,’ ‘moderate,’ and ‘maximal’ categories) and with non-truncated Se-DLAV (black; ‘full’ category). Brackets and asterisks indicate pairs of genotypes with significantly different distributions of these two phenotypic classes as assessed by a two-sided Fisher Exact test, p<0.0083. (B) Expressivity bar graph. Percentage of ‘maximal’ (red), ‘moderate’ (yellow), and ‘minimal’ (gray) Se-DLAV truncations and of ‘full’ (black) non-truncated Se-DLAV in embryos with Se-DLAV truncations of the indicated combinations of genotypes and treatments. Brackets and asterisks indicate pairs of genotypes with significantly different distributions of the four phenotypic classes as assessed by a two-sided Fisher Exact test, p<0.0083. For additional supplementary information related to this figure, see Supplementary file 4. This figure is related to Figure 3.
