Fig. 1

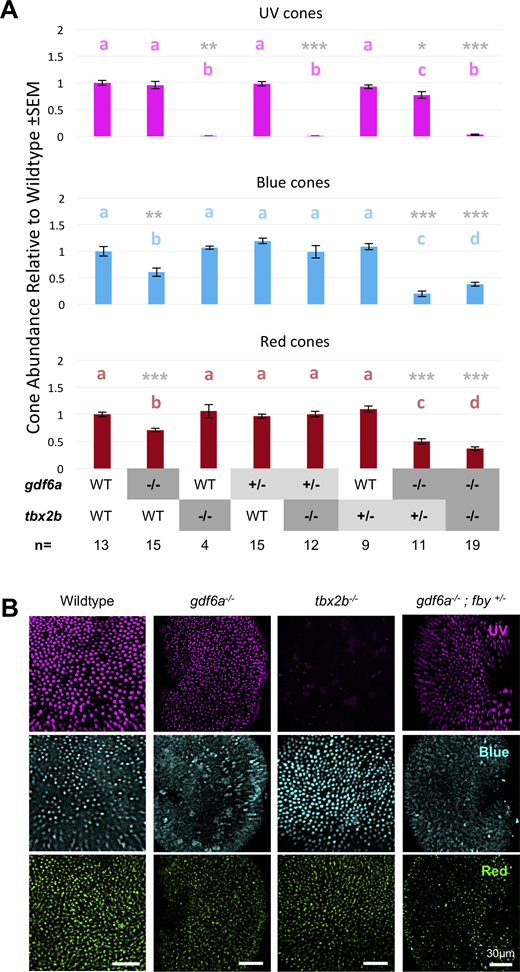

gdf6a loss in tbx2b heterozygous fby carriers reduces UV cone abundance. (A) Relative abundances of UV, blue, and red cones in compound gdf6a+/s327; tbx2b+/fby in-crosses show near-complete loss of UV cones in tbx2bfby/fby mutants and partial loss of UV cones in tbx2b+/fby mutants with gdf6as327/s327 background (labeled gdf6a−/− or “−/−”). Values with matching letters are not significantly different (Kruskal-Wallis test with Mann-Whitney pairwise comparisons, gray asterisks indicate *P < 0.05, **P < 0.01, ***P < 0.001 relative to wild type (WT)/WT controls). Gdf6as327/s327 mutants have reduced blue cones and a novel reduced red cone abundance phenotype, both of which appear either unaffected or slightly enhanced by tbx2b loss. Wild-type values shown are sibling controls. (B) Representative retinal images depicting UV (magenta), blue (cyan), and red cones (green) in wild type, gdf6as327/s327, tbx2bfby/fby, and compound gdf6as327/s327; tbx2b+/fby mutants.
