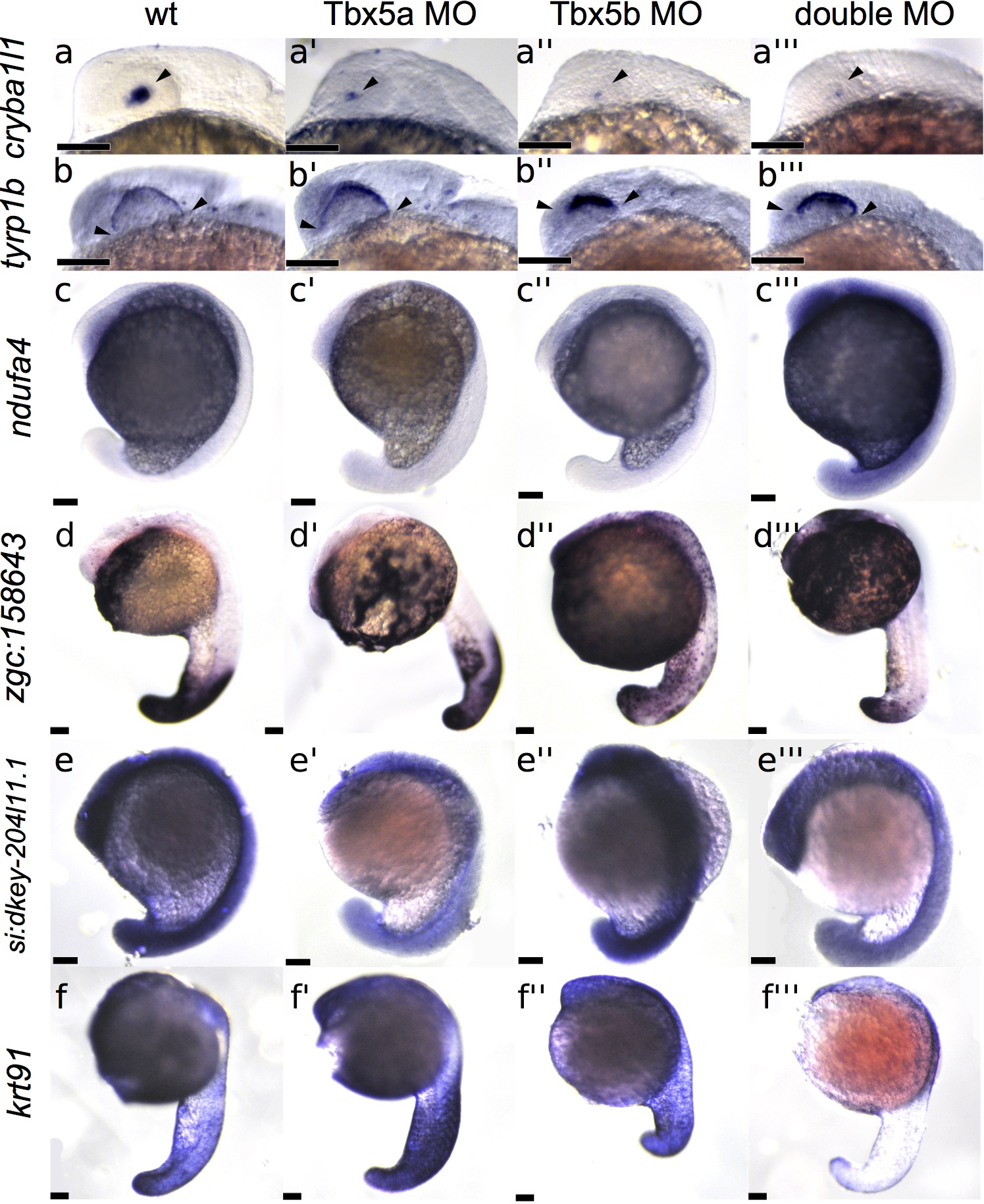

Fig. S5
Differential expression in other tissues.
All views are lateral. At 21 hpf, cryba1l1 is downregulated in Tbx5a-deficient (a?), Tbx5b-deficient (a?), and double-deficient (a??) embryos compared to wildtype (a) embryos in the eye. Arrowheads mark the expression. At 21 hpf, tyrp1b expression is expressed at higher levels in Tbx5a-deficient(b?), Tbx5b-deficient (b?) and double-deficient (b??) eyes compared to wildtype (b) eyes. Arrowheads mark the limits of the expression domain. At 18 hpf, ndufa4 is upregulated in the double-deficient embryo (c??) compared to wildtype (c) embryos. Expression of zgc158642 at 21 hpf is upregulated in Tbx5b-deficient (d?) and double-deficient (d??) embryos compared to wildtype embryos (d). At 18 hpf, si-dkey-204l11.1 expression is downregulated in Tbx5a-deficient (e?) and double-deficient (e??) embryos compared to wildtype (e) embryos. At 21 hpf, expression of krt91 is downregulated in double-deficient embryos (f??) compared to wildtype embryos (f). Note f? has normal tail length, but it is bent out of focus of this image. Scale bars are 100 ?m.
