Fig. 10

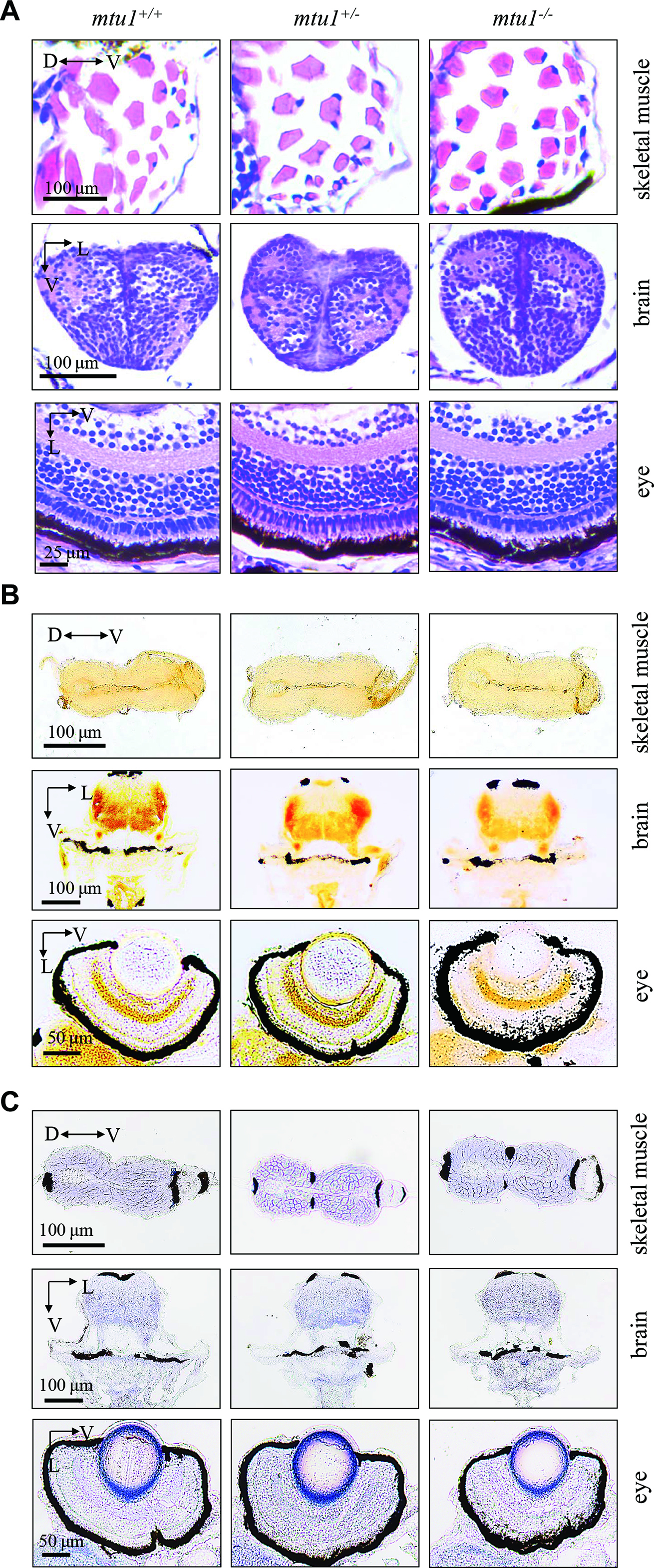

mtu1^−/− zebrafish at 5 dpf did not show the defects in muscle, brain and eyes. (A) Hematoxylin and eosin (HE) staining of skeletal muscles, brain and eye in the wild type (mtu1^+/+), mtu1^+/− and mtu1^−/− zebrafish at 5 dpf. (B) Succinate dehydrogenase (SDH) and (C) cytochrome c oxidase (COX) staining of skeletal muscles, brain and eye in wild type (mtu1^+/+), mtu1^+/− and mtu1^−/− zebrafish at 5 dpf. D, dorsal; P, posterior; V, ventral; L, lateral.
