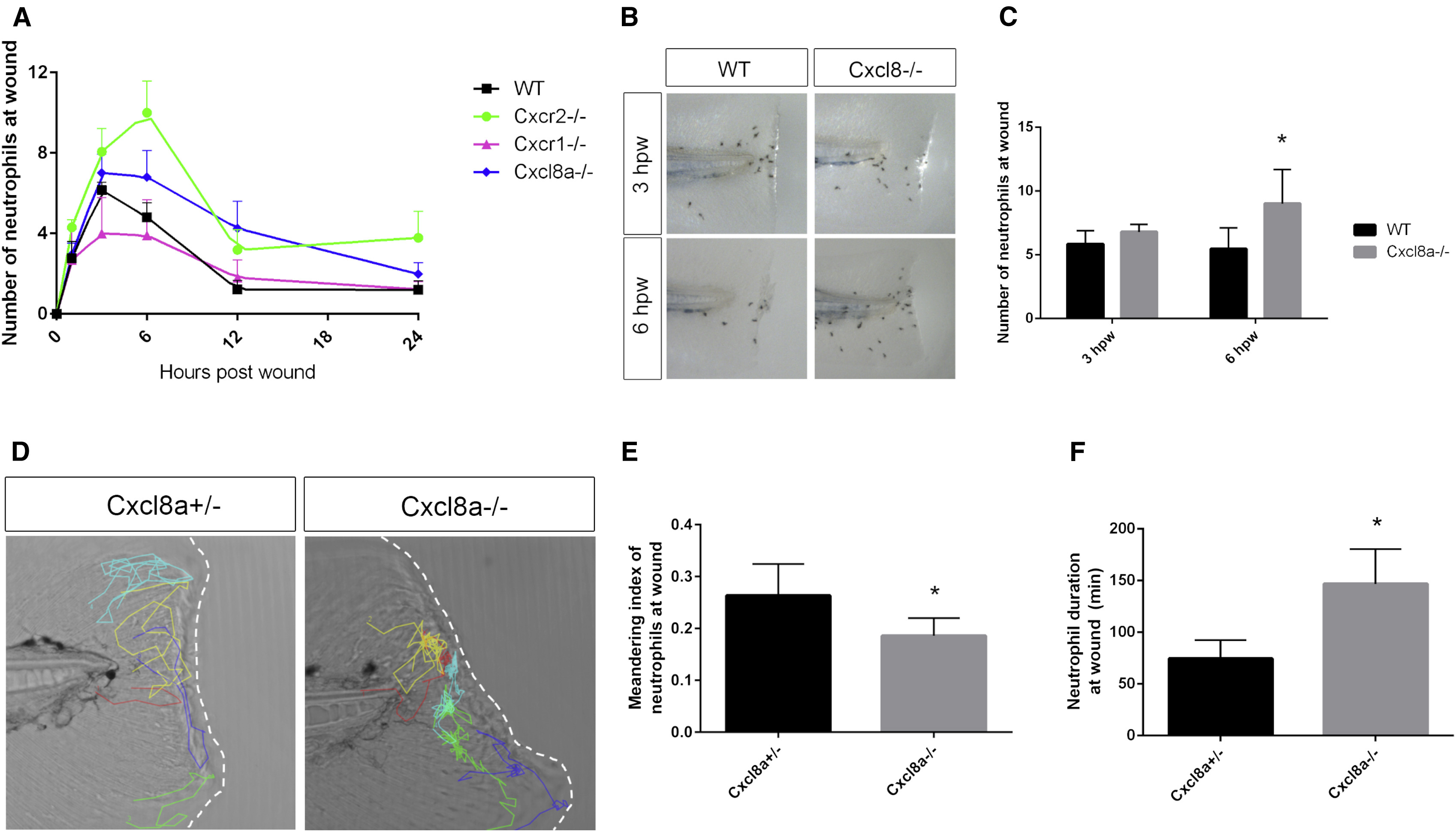

Fig. 6
Cxcl8a Is Required for Neutrophil Reverse Migration from the Wound
(A) Average number of neutrophils at the wound is compared in WT, cxcr1−/−, cxcr2−/−, and cxcl8a−/− larvae (n = 13–32 larvae per time point/condition).
(B) Sudan black staining of neutrophils at 3 and 6 hpw in WT and cxcl8a−/−.
(C) Quantification of neutrophils at the wound shows more neutrophils at 6 hpw in cxcl8a−/− compared to heterozygote siblings (n = 74 WT and 75 mutants [3 hpw] and 91 WT and 70 mutants [6 hpw]).
(D) Representative tracks of neutrophils at the wound in cxcl8a+/− and cxcl8a−/− larvae.
(E) Neutrophil duration at the wound is greater in cxcl8a−/− than in heterozygotes (n = 17 het and 15 mutant larvae).
(F) Meandering index is decreased in cxcl8a−/− compared to het siblings. ∗p < 0.05.
Error bars represent SE.
