Fig. S6

ID
ZDB-IMAGE-180709-28
Source
Figures for Zhang et al., 2018
Figure Caption

Fig. S6

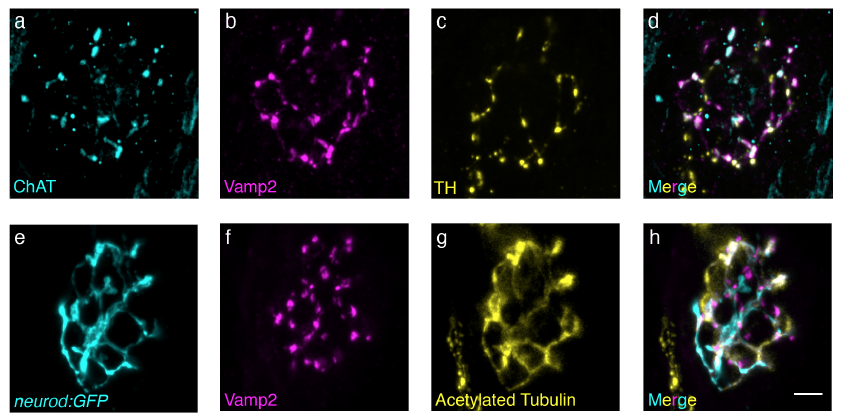

Dopaminergic and cholinergic efferent neurons innervate lateral-line neuromasts. (a-d) Neuromast immunostaining of ChAT (cyan, a) and TH (yellow, c) label cholinergic and dopaminergic efferents respectively. Colocalization of Vamp2 (magenta, b), a neuronal presynaptic marker, with ChAT and TH (d) demonstrates that both types of efferents make presynaptic contacts on or near neuromasts. (e-h) Neuromast afferents expressing neurod:GFP (cyan, e) demonstrate that cumulatively, Acetylated tubulin (yellow, g) and Vamp2 (magenta, f) immunostaining can be used to label afferent and efferent innervation respectively. Scale bar = 5 μm.
