Increased apoptosis in MZudu-/- embryos is not causative of axis extension defects

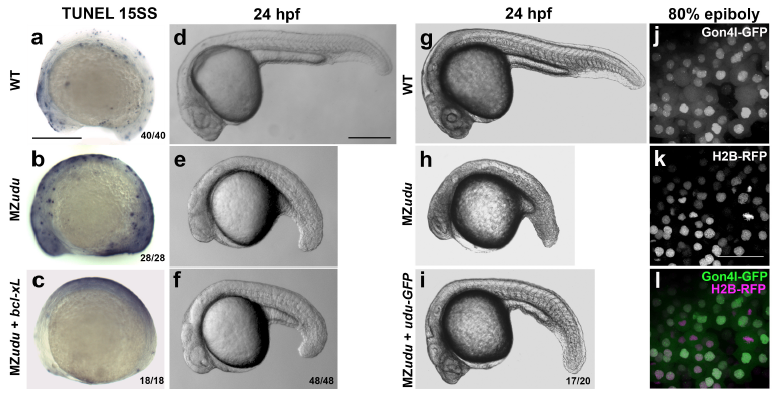

a-c) TUNEL staining in WT (a), MZudu-/- (b), and MZudu + bcl-xL RNA (c) at 15 somite stage. d-i) Live WT (d,g), MZudu-/- (e,h), MZudu + bcl-xL (f), and MZudu + 25pg udu-gfp (i) embryos at 24hpf. Fractions indicate the number of embryos with the pictured phenotype over the number of embryos examined. j-l) Live WT embryos at 80% epiboly expressing Gon4l-GFP (j) and Histone2B-RFP (k), merged channels in l. Images are representative of four independent trials. Scale bars are 300μm in a-i, 50μm in k. Anterior is to the left.
