Fig. S3

ID
ZDB-IMAGE-180703-37
Source
Figures for Campbell et al., 2018
Figure Caption

Fig. S3

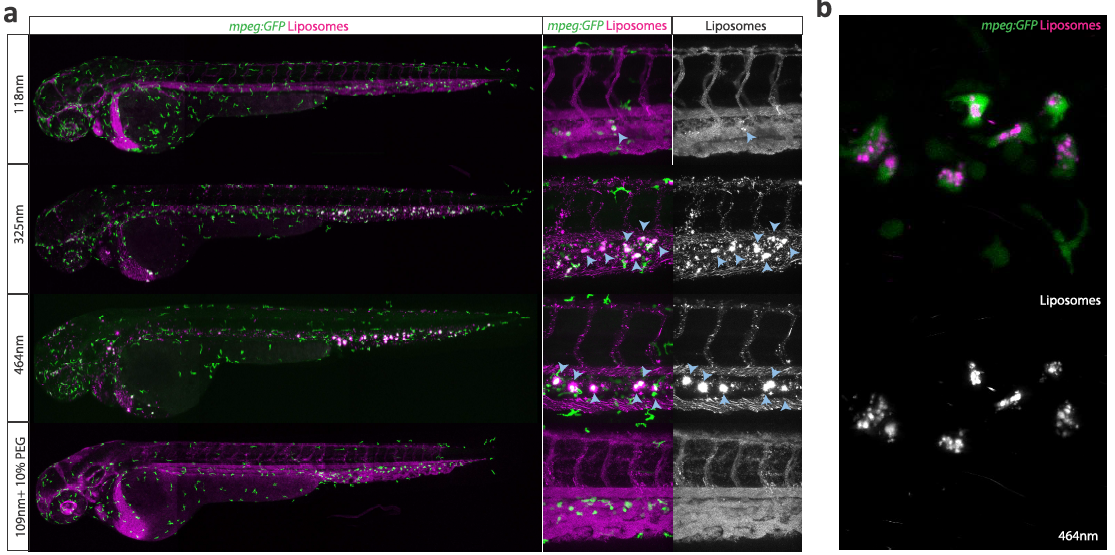

Size-dependent uptake of neutral liposomes by monocytes/macrophages. A. Whole-embryo and cellular views of liposome distribution in mpeg:GFP transgenic embryos, 2h after injection with Myocet liposomes ~100nm (with and without 10 mol% DOPE-mPEG2000), 325nm and 464nm pores. Immobile liposome aggregates were observed to colocalize with mpeg:gfp positive macrophages/monocytes within the caudal hematopoietic tissue (CHT). Fluorescence intensity was found to increase with increased liposome size, and phagocytosis could be prevented by PEGylation. B. High-resolution imaging shows intracellular localization of 400nm liposomes within macrophages/monocytes.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ ACS Nano
