ZFIN Image: Kumar et al., 2018, Fig. 3


Figure Caption

Fig. 3

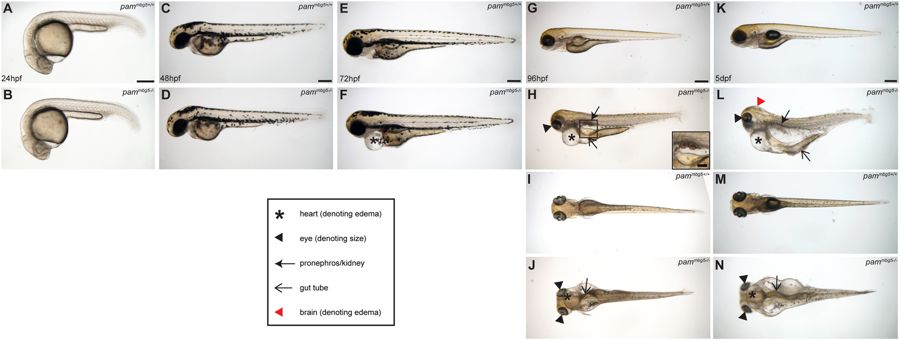

Phenotypic analysis of pam^−/− zebrafish embryos. Dorsal and lateral views of wildtype (panels A,C,E,G,I,K and M) and pam^mbg5−/− (panels B,D,F,H,J,L and N) embryos; comparison of wildtype (A and C) and pam^mbg5−/− mutants (B and D) revealed no obvious differences at 24 and 48 hpf. By 72 hpf, pam^mbg5−/− embryos develop pericardial edema (asterisk in F); by 96 hpf, additional edema around the abdomen (thin arrows in H and J), irregular cyst-like protrusions in the abdominal region (inset in H), and smaller eyes (arrowheads in H and J) were observed. The general area of the pronephros is indicated by thick arrows (in H and L). Severe edema developed at 5 dpf in pam^mbg5−/− mutants (L and N). Additional edema in the brain was also visible (red arrowhead in L). Developmentally normal wildtype sibling controls at 5 dpf are shown for comparison (K and M). A key to the symbols used is provided.
