Figures for Duong et al., 2017

Figure Caption/Comments:

Fig. S2

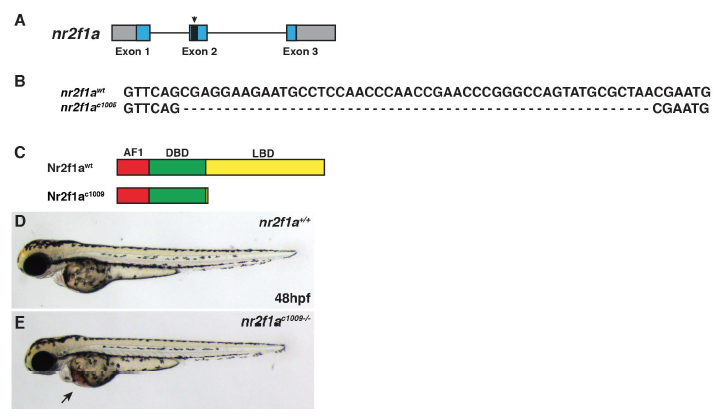

Generation of second nr2f1a deletion allele. (A) Schematic of deletion in nr2f1a exon 2 induced from the CRISPR/Cas9. (B) Sequence of the 49-bp deletion in the nr2f1aci1009 mutant allele. (C) Schematic indicating the predicted truncation caused by the out of frame deletion. (D,E) WT and nr2f1a ci1009-/- mutant embryos at 48 hpf. Arrow indicates blood pooling and edema on yolk.
