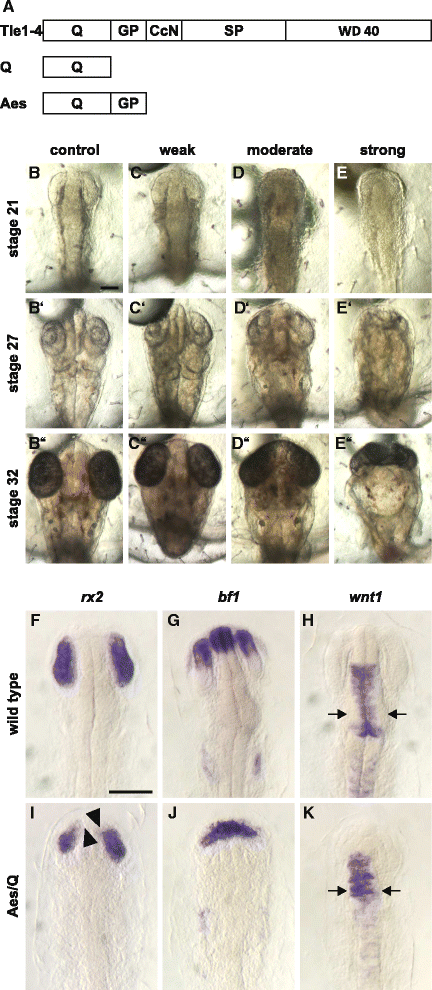

Fig. 6
Aes-mediated Groucho/Tle loss of function phenotypes. a Schematized presentation of full length Tle protein, the Q-domain, and Aes. For transgenic lines, embryos at the 1-cell stage were injected with 20 ng/μl of DNA (Gfp:HSE:Aes and Gfp:HSE:Q). The F1 generation was heat-induced (10 min, 43.5 °C) at stage 15/16. b-k Embryos are shown in dorsal view, anterior to the top. f-k Flat mounts. c-d Phenotypes of the Aes/Q-mediated Groucho/Tle loss of function were categorized according to their eye phenotype into: (c-c″) weak, smaller eyes tilted towards the midline; (d-d”) moderate, beginning cyclopia anterior; strong (e-e”), cyclopic eye. For whole mount in situ hybridization experiments (f-k), using the indicated digoxigenin-labelled RNA probes, fixation was performed at stage 21; heat treatment occurred as described before. i rx2 expression indicates a reduction in eye size, the eyes are tilted at the anterior end towards the midline (arrowheads); (j) Bf1 expression is reduced; (k) Wnt1 expression indicates a reduction in midbrain size. Instead of a defined expression close to the midline (h, arrows), Aes misexpression resulted in an indistinct expression pattern throughout the midbrain (K, arrows). (b-b″, f-h) control embryos were heat-treated wild type embryos. Scale bars 100 μm; b, b-e”; f, f-k
