Fig. 6

ID
ZDB-IMAGE-180410-40
Source
Figures for Srivastava et al., 2017
Figure Caption

Fig. 6

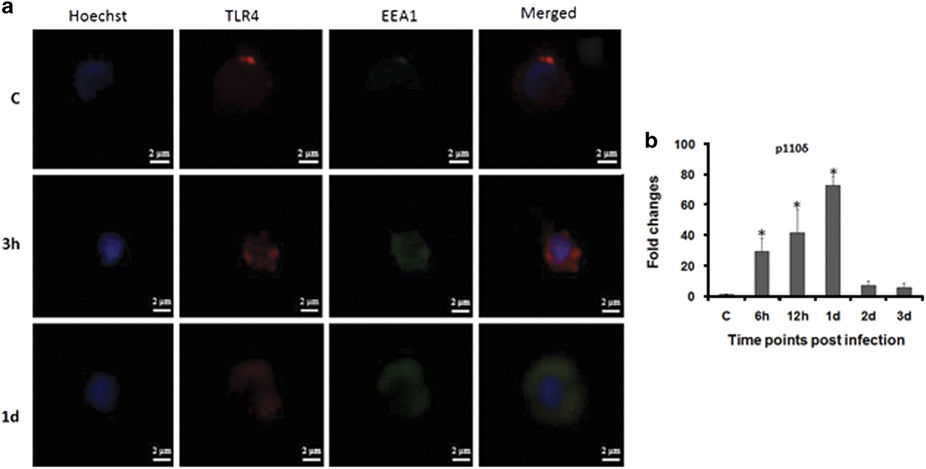

Subcellular distribution of TLR4. (a) zSPM were isolated from control and infected fish, stained with Hoechst 33342, TLR4 and EEA1 antibody for TLR4 internalization study (×100). (b) Expression of p110δ was determined from spleen of control and infected fishes. Each bar represent the mean of three independent experiments (n=5/experiment) and the error bars represent the standard deviations. C, control; d, days; h, hours; zSPM, zebrafish splenic macrophages and asterisks '' on bars indicate significant difference from control (P<0.05).
